Bracket ID help

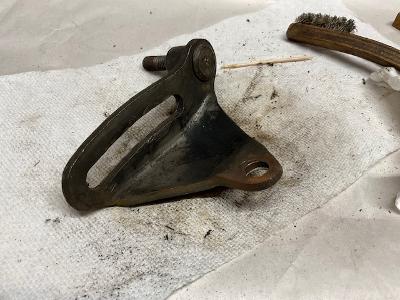

I have no idea what this is for, but pretty sure someone here know. Thanks in advance.
|
|
#2
06-08-2025, 10:04 AM
|
||||
|
||||
|
Alternator bracket on engine
|
|
#4
06-08-2025, 05:36 PM
|
||||
|
||||
|
That’s tough, so many I got a bud who’s got a big box of brackets, wants me to,post on a forum for him ��*��
__________________
It's only Orig once I spend a lot of money on Wine, Women and Cars, I waste all the rest. 1978 Y88 1995 Q45
|
|
#5
06-08-2025, 09:48 PM
|
||||
|
||||
|
Looks more like an A/C compressor belt tensioner bracket. Would have been bolted to the intake. Sorry, no knowledge as to specific app or year.
__________________
Mitch 1970 Chevelle SS 1966 Chevelle SS 1967 Camaro ss/rs 1938 Business coupe, street rod 2000 FXSTS, original owner, 13k miles
|
|
#6
06-14-2025, 01:22 AM
|
|||
|
|||
|
P/S to A/C adjuster
This is a 77-81 SBC adjuster bracket. It bolts to the first exhaust manifold bolt and connects to the the main A/C bracket. The adjuster slot is for the P/S pump.
|
| The Following 2 Users Say Thank You to X22SS For This Useful Post: | ||
Rsconv68 (06-14-2025), Too Many Projects (06-14-2025) | ||
|
#8
06-15-2025, 02:12 AM
|
|||
|
|||
|
No, GM used several different ones from 69-76, but never this style. I've dealt with "The Parts Guy" before, nice guy but his application years for many of the brackets he sells are incorrect.
|
 |
|
|
