#1
05-10-2014, 10:01 PM
|
|||
|
|||
65-74 Big Block Exhaust Manifold Bolts

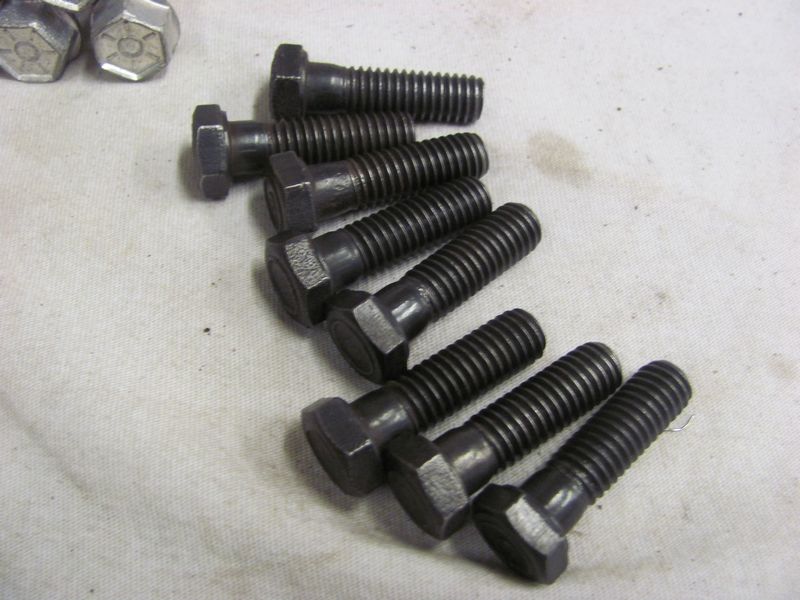

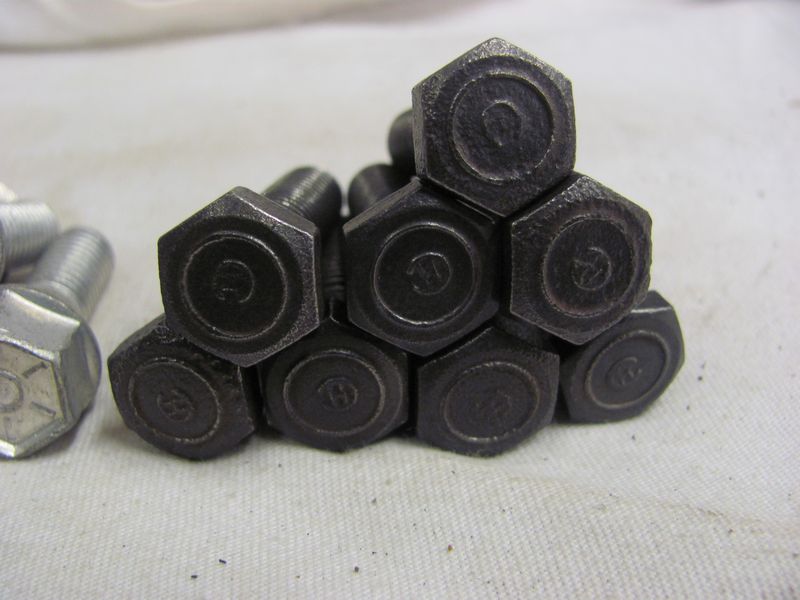

1 set of 16 A Big Block Exhaust manifold bolts for 65-70 cars. These are the non locking thread. VERY HARD TO FIND UNRUSTED ORIGINALS. 350.00 shipped to the lower 48 I have a few more sets of F, C and O.
|
|
#3
05-11-2014, 04:58 PM
|
|||
|
|||
|
Re: 65-70 Big Block Exhaust Manifold Bolts

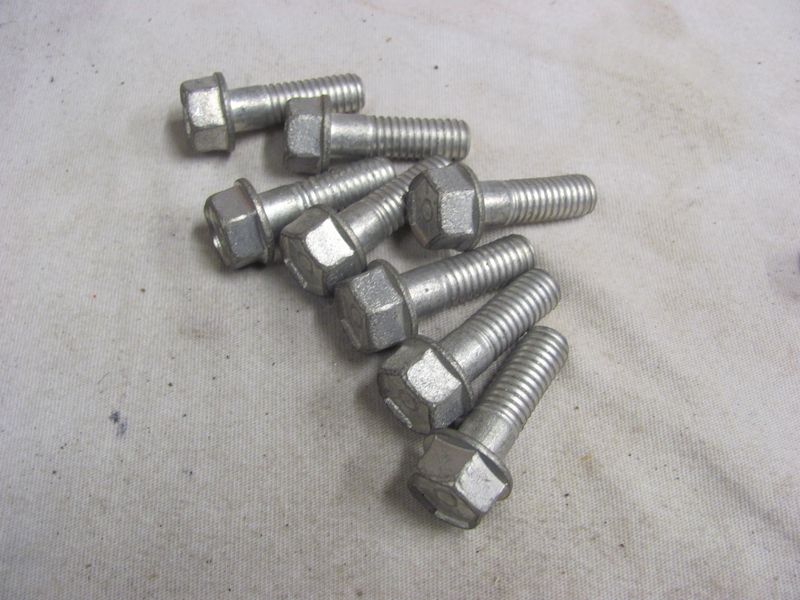

Rick, This set is all the same length and not shouldered. I have shouldered locking exhaust manifold bolts I will be posting. Depending on options...P/S....A/C...the # of bolts required vary per vehicle. Shouldered locking thread bolts started in for some models in late 67 on Corvettes with AIR for the outer 4 ports I have seen some Camaros Chevelles and Novas with shouldered and non shouldered. Here is a picture of a set of mixed hex and shouldered bolts. I'll post more tomorrow.
|
|
#5
05-11-2014, 06:11 PM
|
|||
|
|||
|
Re: 65-70 Big Block Exhaust Manifold Bolts
Mike,
Looks like a very nice 1970 SS396 Chevelle :-) Dan
__________________
69 300 Deluxe Post Sedan Frost Green 69 SS396 300 Deluxe Post Sedan Lemans Blue SOLD 70 Buick Skylark Post Sedan Gulfstream Blue 70 Buick Skylark Post Sedan Burnished Saddle http://m.youtube.com/watch?v=PM3DE8qI2NY https://m.youtube.com/watch?v=Yn4xEmGypUw
|
|
#6
05-11-2014, 06:49 PM
|
|||
|
|||
|
Re: 65-70 Big Block Exhaust Manifold Bolts
70 396? I wouldn't think an L78 Chevelle would use that LH smog tube. [img]<<GRAEMLIN_URL>>/no.gif[/img] LS6 yes..........that style smog tube starts showing up on Chevelles sometime in January, too late for an L78 Chevelle. Ok Mike who's motor is it? BTW nice hardware you've been offering up Rich!
Chris
|
|
#7
05-11-2014, 08:42 PM
|
||||
|
||||
|
Re: 65-70 Big Block Exhaust Manifold Bolts
Chris
It is just a ref: shot I took somewhere to show off the OE bolt layout, and thanks for keeping Dan stright... [img]<<GRAEMLIN_URL>>/naughty.gif[/img] Mike
|
|
#8
05-12-2014, 02:48 AM
|
||||
|
||||
|
Re: 65-70 Big Block Exhaust Manifold Bolts
Yes.
Just like Mikes photo above,most big blocks,including trucks,came with a longer shouldered bolt on the 2 outside exhaust ports...(bolt #3909830 3/8 X 16 X 2&1/16). And a shorter,non-shouldered and non-washered bolt on the 2 inside ports...(bolt #3909821 3/8 X 16 X 1&3/16). Also remember that what GM recommended an engine assembler to install vs. what that assembler actually did install,were not always the same thing. This is one glaring detail that so many restorers/owners overlook.
|
|
#9
05-12-2014, 03:02 AM
|
|||
|
|||
|
Re: 65-70 Big Block Exhaust Manifold Bolts
Mike great Picture and the confirms what I have observed on many cars the outer ports got the flanged head locking bolts while the inner ports got the non locking thread non flanged bolts!!!
|
|
#10
05-12-2014, 03:13 AM
|
||||
|
||||
|
Re: 65-70 Big Block Exhaust Manifold Bolts
I have a couple engines photos and yes both sides are the same. I have seen some other good survivors and did not have the camera. Keep your eyes open when you run across those not messed with cars [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]
The dip stick tube fits better too with the non shouldered bolt. Mike
|
