Drum Brake/Backing Plate Component Finishes ??

Wanting to see pics of most accurate restoration(s) of how 1970 (and other same as)
Drum Brake assy line components were Finish Plated or BARE STEEL.....????

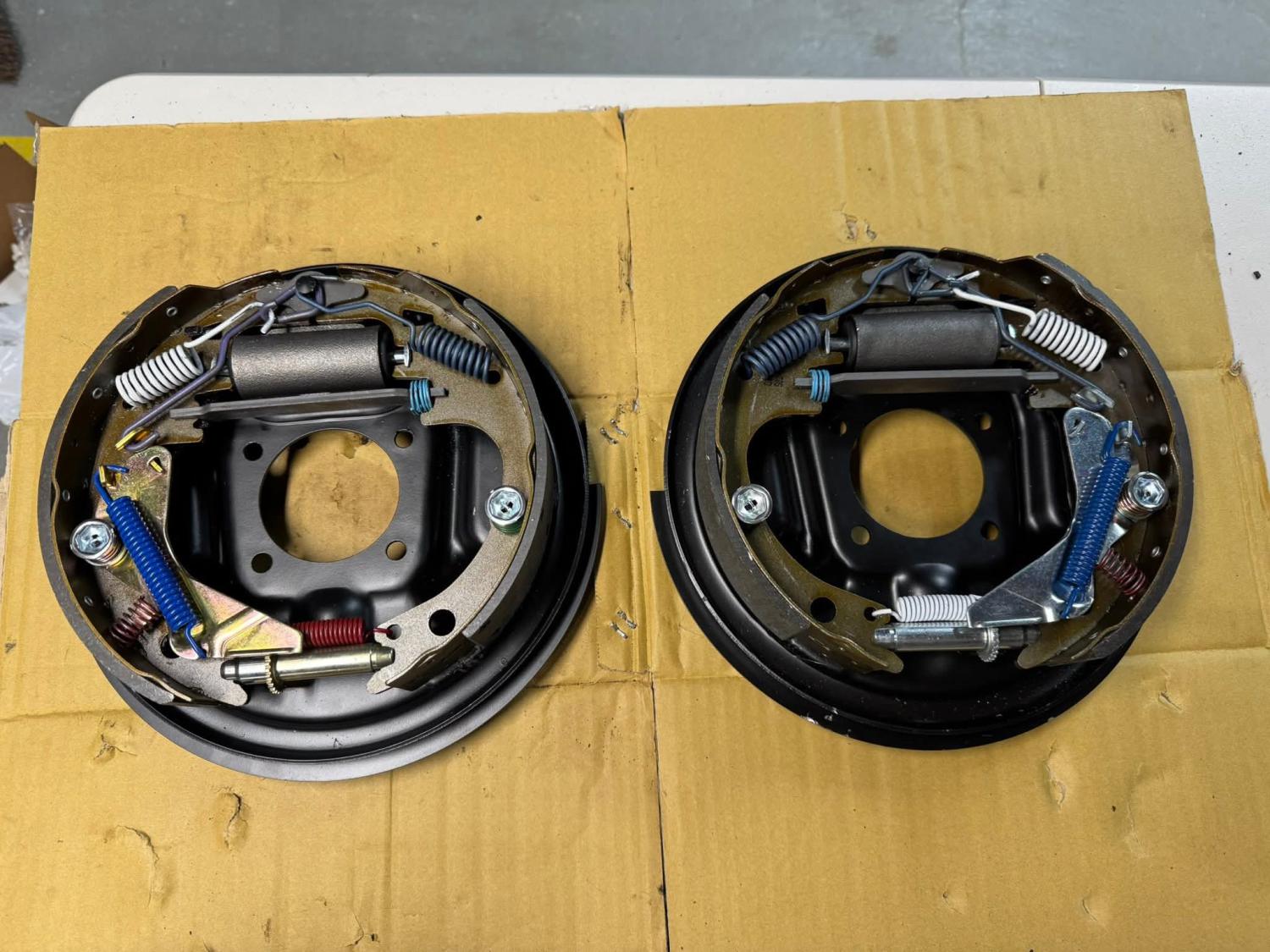

This picture just one of many examples .........

Do I need to number/caption the components or can you please show pics
that are obvious......Yellow Zinc, Clear Zinc, Bare Steel

Attached Images

__________________
Chuck Sharin
[email protected]
Auburn,WA (30 miles South of Seattle)
70 Camaro R/S Z-28, L-78, R/S SS
69 Camaro COPO "recreation"

Last edited by CamarosRus; 03-11-2026 at 08:18 PM.
