Quote:
Originally Posted by 67since67 View Post
This is for Chris (60's stuff). The young lady is Nancy with her Mother's new '67 GTO, purchased at Feldman Pontiac in Waterloo, Iowa. A rather unique car, HO engine with 3 speed trans (floor shifted). I believe that would be a Ford top loader??
After her Mother's passing her Dad sold it to a friend for a few years, now it is in the Chicago suburbs. Today Nancy showed me a pic of the car on the cover of a JC Whitney catalogue. She is in contact with the owner and they plan to get together at some point.
I remember being impressed by the HO engine's free flowing exhaust manifolds. - Bill W
Good morning Mr. W,

Thank you for posting such a cool vintage photo!
Looks to be N code Burgundy with Black Cordova top and White pinstripes.
Custom wheel disc.
White line tires.
Looks like a Custom Sport ‘wood’ wheel.
Dealer name plate.

I’ve had several 1967 HO cars and many ‘66 Tri-Power cars and I can tell you these two cars are almost neck and neck, but that HO will prevail at the end.

Many unique components to the ‘67 HO that make it special.

Massive exhaust manifolds.
These manifolds barely clear the chassis and get extremely hot so a stainless steel shield is fastened to the top of the starter solenoid. The HO solenoid is a first year design “348” with a solid steel cap, unlike the brown Bakelite found on other solenoids.
A special engine wire harness is used that has the two starter wires routed in a long U turn. Up to the front of the LH side of engine, down the front and back to the starter traveling through an oval metal tube fastened to the top of the LH engine mount. This also requires a special positive battery cable that goes through that starter wire tube. These are a PITA to deal with when servicing a starter.

The 49 state HO used a large round air cleaner.
Attached Images

__________________
1965 GTO Unrestored Survivor 389 / 335 4 BBL.
1966 GTO Unrestored Survivor 389 / 360 Tri-Power
Early (63-66) Schwinn Stingrays, all Unrestored Survivors

Last edited by 60sStuff; 07-19-2023 at 02:10 PM.
Reply With Quote
The Following 9 Users Say Thank You to 60sStuff For This Useful Post:
67since67 (07-20-2023), 69M22Z (07-19-2023), dykstra (07-27-2023), grantprix (07-19-2023), olredalert (07-19-2023), PeteLeathersac (07-20-2023), RPOLS3 (07-27-2023), Tenney (07-20-2023), Xplantdad (07-19-2023)
  #2
Old 07-20-2023, 01:49 AM
67since67's Avatar
67since67 67since67 is online now
Yenko Contributing Member

Join Date: Mar 2016
Location: Waterloo Iowa
Posts: 2,091
Thanks: 3,429
Thanked 5,201 Times in 1,202 Posts
Default

Quote:
Originally Posted by 60sStuff View Post

Thank you for posting such a cool vintage photo!
You're welcome Chris, I thought you might like it!

Thanks for the details of the HO engine, Pontiac really stepped up for that one!

The Feldman building has housed an overhead door company for decades, I snapped some pix while being prepped for paint a few years ago. - Bill W
Attached Images


Last edited by 67since67; 07-20-2023 at 02:45 AM. Reason: spelling...
Reply With Quote
The Following 7 Users Say Thank You to 67since67 For This Useful Post:
60sStuff (07-20-2023), 69M22Z (07-20-2023), dykstra (07-27-2023), gtomike1967 (07-22-2023), olredalert (07-20-2023), PeteLeathersac (07-27-2023), Tenney (07-20-2023)
  #3
Old 07-20-2023, 12:59 PM
60sStuff's Avatar
60sStuff 60sStuff is offline
Yenko Contributing Member

Join Date: Jul 2019
Location: Fremont, Ca.
Posts: 1,152
Thanks: 2,099
Thanked 4,632 Times in 877 Posts
Default

Morning Bill,

I’d say you were fortunate to have been in that neighborhood at the time someone was prepping the building for paint to capture those historical photos.

I tried to clean up the two photos a bit.
First one is obvious.
Second, not so much other than the Pontiac crest.

Thank you for these vintage pics to go with the ‘67 HO.

Chris.
Attached Images

__________________
1965 GTO Unrestored Survivor 389 / 335 4 BBL.
1966 GTO Unrestored Survivor 389 / 360 Tri-Power
Early (63-66) Schwinn Stingrays, all Unrestored Survivors
Reply With Quote
The Following 6 Users Say Thank You to 60sStuff For This Useful Post:
67since67 (07-20-2023), 69M22Z (07-20-2023), dykstra (07-27-2023), olredalert (07-20-2023), PeteLeathersac (07-27-2023), Tenney (07-20-2023)
  #4
Old 07-21-2023, 01:06 PM
60sStuff's Avatar
60sStuff 60sStuff is offline
Yenko Contributing Member

Join Date: Jul 2019
Location: Fremont, Ca.
Posts: 1,152
Thanks: 2,099
Thanked 4,632 Times in 877 Posts
Default Follow-up

For those interested in more information on the 1967 GTO equipped with the optional HO (L74) and RA (L67).

Below are a few factory illustrations about the U-turn engine wire harness that’s required for these two models fitted with the large exhaust manifolds.
Attached Images

__________________
1965 GTO Unrestored Survivor 389 / 335 4 BBL.
1966 GTO Unrestored Survivor 389 / 360 Tri-Power
Early (63-66) Schwinn Stingrays, all Unrestored Survivors
Reply With Quote
The Following 9 Users Say Thank You to 60sStuff For This Useful Post:
67since67 (07-27-2023), dykstra (07-27-2023), grantprix (07-21-2023), gtomike1967 (07-22-2023), L_e_e (07-21-2023), olredalert (07-21-2023), PeteLeathersac (07-27-2023), RPOLS3 (07-27-2023), Tenney (07-21-2023)
  #5
Old 07-27-2023, 02:17 AM
67since67's Avatar
67since67 67since67 is online now
Yenko Contributing Member

Join Date: Mar 2016
Location: Waterloo Iowa
Posts: 2,091
Thanks: 3,429
Thanked 5,201 Times in 1,202 Posts
Default

Interesting details Chris! I remember similar cable routings from my short tenure at a Pontiac dealership in the mid 70's, not sure on what specific cars though. - Bill W
Reply With Quote
The Following User Says Thank You to 67since67 For This Useful Post:
60sStuff (07-27-2023)
  #6
Old 07-27-2023, 09:47 AM
3X24SPD 3X24SPD is offline
Senior Member

Join Date: Oct 2020
Posts: 120
Thanks: 30
Thanked 198 Times in 54 Posts
Default

That's a great illustration.

When I put my '66 together, I didn't like the way the factory put the positive battery cable routing up between the exhaust manifold tubes to the inner fender- so I was planning to fabricate a routing tube to do just what that '67 HO tube does.

Then I discovered the factory '67 Tube- and just bought that.

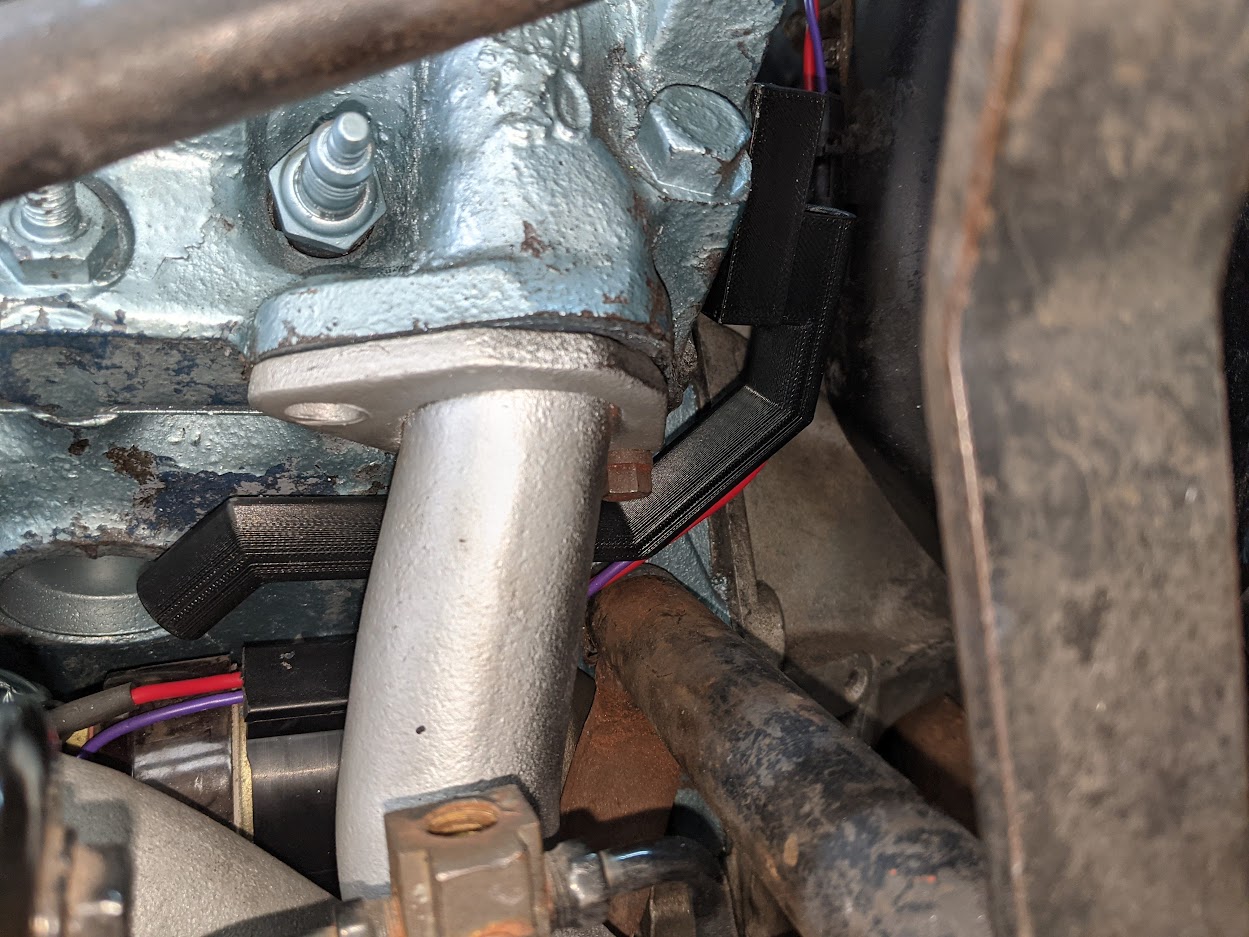

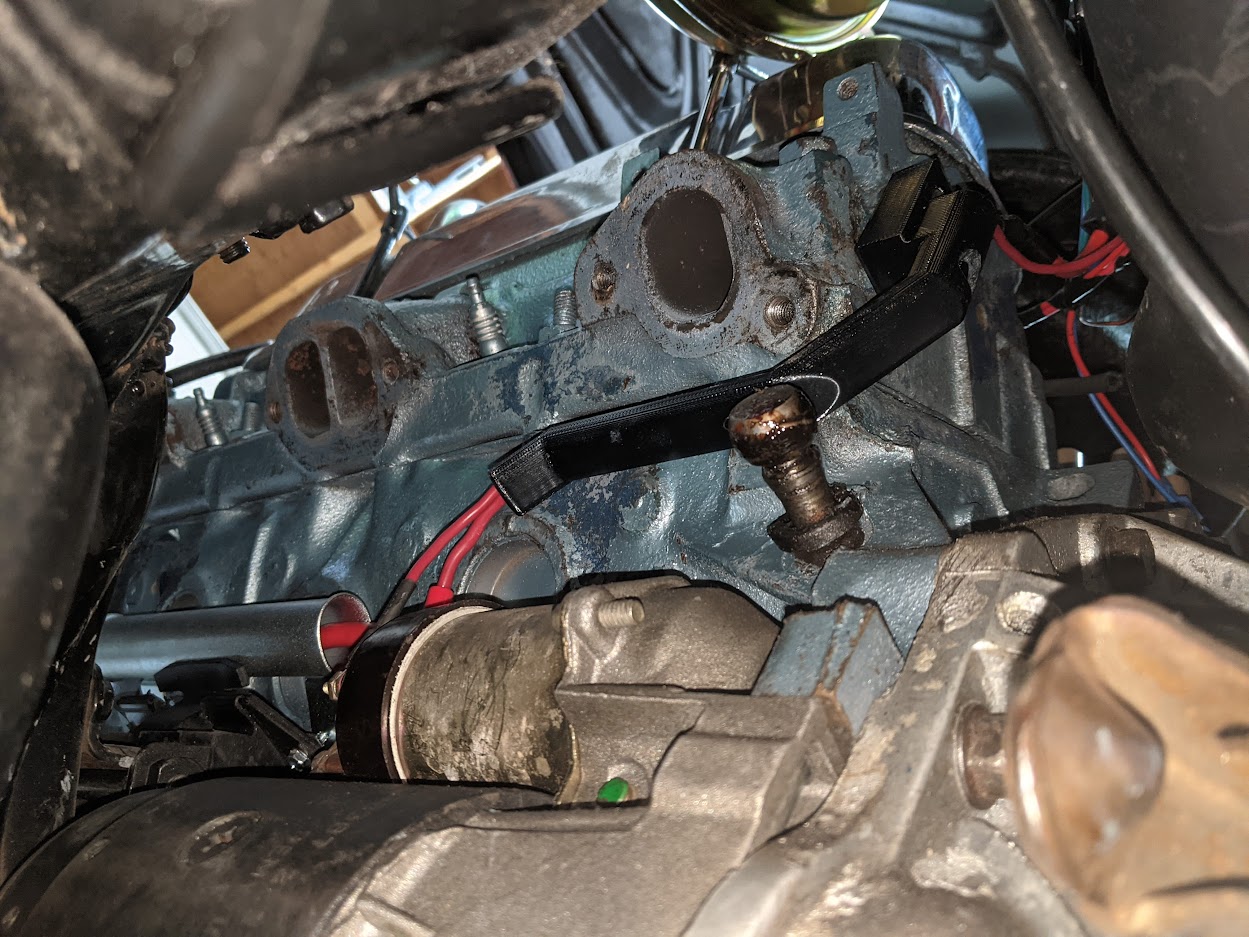

But I didn't like or want to route the starter wires through that same tube- then up & around the front of the motor- so I modeled a custom tube, and 3D-printed it to route those wires up the back of the block.

BTW- that tube is printed in Ultem for any of you folks wondering if a polymer will hold up to the temps.
Attached Images

Reply With Quote
The Following 5 Users Say Thank You to 3X24SPD For This Useful Post:
69M22Z (07-27-2023), dykstra (07-27-2023), olredalert (07-27-2023), PeteLeathersac (07-27-2023), Tenney (07-27-2023)
  #7
Old 07-27-2023, 04:46 PM
Rfish Rfish is offline
Senior Member

Join Date: Dec 2014
Location: Vermont
Posts: 102
Thanks: 14
Thanked 106 Times in 31 Posts
Default

Quote:
Originally Posted by 3X24SPD View Post
That's a great illustration.

When I put my '66 together, I didn't like the way the factory put the positive battery cable routing up between the exhaust manifold tubes to the inner fender- so I was planning to fabricate a routing tube to do just what that '67 HO tube does.

Then I discovered the factory '67 Tube- and just bought that.

But I didn't like or want to route the starter wires through that same tube- then up & around the front of the motor- so I modeled a custom tube, and 3D-printed it to route those wires up the back of the block.


BTW- that tube is printed in Ultem for any of you folks wondering if a polymer will hold up to the temps.
Looks nice but why not use the F-body metal tube which mounts and runs in the same location?
Reply With Quote
  #8
Old 07-27-2023, 07:59 PM
3X24SPD 3X24SPD is offline
Senior Member

Join Date: Oct 2020
Posts: 120
Thanks: 30
Thanked 198 Times in 54 Posts
Default

Quote:
Originally Posted by Rfish View Post
Looks nice but why not use the F-body metal tube which mounts and runs in the same location?
Saw that, looked like a '68 only piece?
Wasn't sure it would work with the header tubes, and I seem to recall I couldn't even find one available for sale in a search- only images.
Quicker and much easier to model one and print it and had it ready to go in a couple hours.
Attached Images


Last edited by 3X24SPD; 07-27-2023 at 08:03 PM.
Reply With Quote
