Air cleaner base ID

**BLACKLS5** · #1 02-23-2023, 12:31 PM

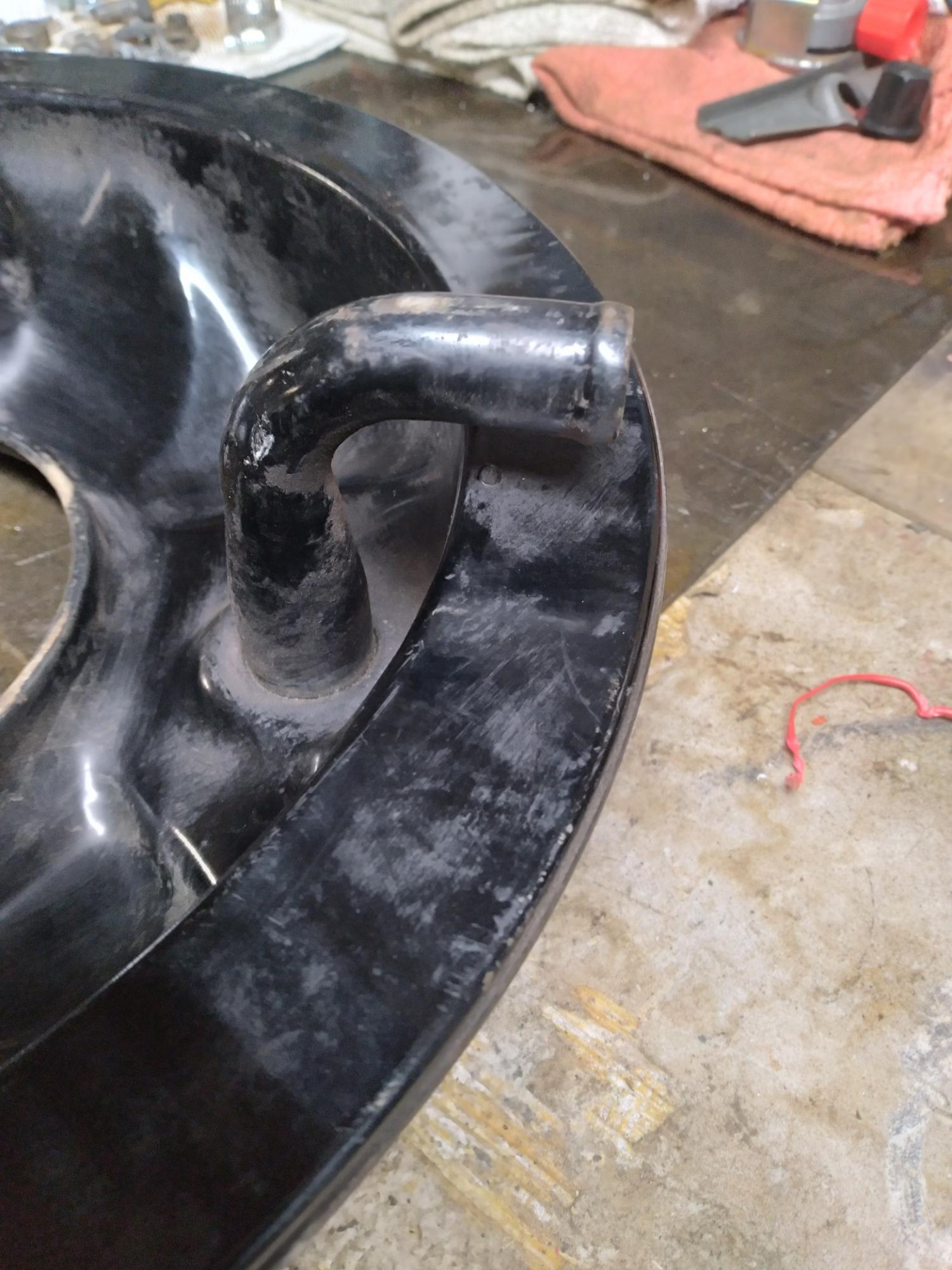

I needed a base and both needed modified to work. I think the other base I have is from a repop cowl induction air cleaner. I guess I won't use this one. I'm not sure what lid what have been used with it.

**McCune** · #2 02-23-2023, 01:10 PM

That base is the last open element air filter Chevy used. It fits a one year only 1973 Z28. The odd tube angle is for clearance of the EGR valve.

**John Brown** · #3 02-23-2023, 03:15 PM

The fact that it tapers down to a 3/4 inch tube makes a big difference. Most all others have a full one inch tube.

**Big Block Bill** · #4 02-23-2023, 08:08 PM

Quote:

Originally Posted by McCune

That base is the last open element air filter Chevy used. It fits a one year only 1973 Z28. The odd tube angle is for clearance of the EGR valve.

Would a 1973 open element Chevrolet base have a flat bottom? After 1970 most I saw had a ridge going around the outside.

Bill

The Following User Says Thank You to BLACKLS5 For This Useful Post:
X66 714 (02-23-2023)

The Following 4 Users Say Thank You to McCune For This Useful Post:
BLACKLS5 (02-24-2023), roadster (02-24-2023), Tracker1 (02-23-2023), X66 714 (02-23-2023)

The Following User Says Thank You to Big Block Bill For This Useful Post:
SPEEDYB (02-27-2023)
