Default original rear brakes shoes 68,69 camaro

Did the original rear brake shoes have a grove machined in them.I have a set of original shoes from my 69z and the front shoes (rear brakes) has a groove about a 1/2 wide machined in it.Is this the true original shoes??? thanks John
Reply With Quote
Attachments - The Supercar Registry 353536-093Right.jpg 353359-BrakeShoe.JPG
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 08-19-2008, 06:30 AM
Alss's Avatar
Alss Alss is offline
Yenko Contributing Member

Join Date: Feb 2002
Location: The tax State of New Jersey
Posts: 2,542
Thanks: 19
Thanked 54 Times in 19 Posts
Default Re: original rear brakes shoes 68,69 camaro

Thats them..my COPO still the originals when I restored it
__________________
1969 9566AA COPO Chevelle M-22
1969 Malibu 489 ZL-1 T-56/4.56
1969 Beaumont 540 th400 3.70
1969 Chevelle 300 Deluxe 427 ZL-1 M 22W
1970 Olds 442 W 30 2 door post
1969 Ply. GTX 426 hemi auto. Blue.
1940 Dodge pick up Durango 4X4
1968 Camaro ragtop LSA ZL1
Reply With Quote
  #3
Old 08-20-2008, 02:35 AM
Dusk Blue Z Dusk Blue Z is offline
Yenko Contributing Member

Join Date: Jan 2004
Location: Crossville, TN
Posts: 135
Thanks: 31
Thanked 49 Times in 11 Posts
Default Re: original rear brakes shoes 68,69 camaro

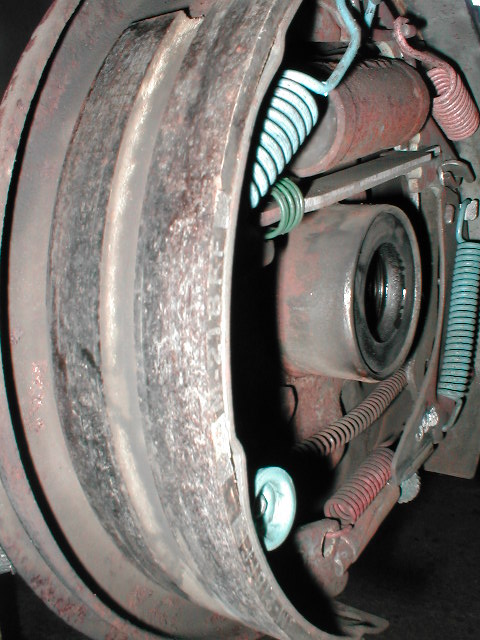

Here's a picture of one, date code printed on the auto brake adjuster too.

Mike
Attached Images

Reply With Quote
  #4
Old 08-20-2008, 07:34 AM
enio45 enio45 is offline
Yenko Contributing Member

Join Date: Oct 2002
Location: Gilbert, AZ
Posts: 4,113
Thanks: 420
Thanked 368 Times in 214 Posts
Default Re: original rear brakes shoes 68,69 camaro

how do u read the date codes on the brakes?
__________________
Eddie M

Camaro-less
87 El Camino SS
Few Ferrari's
Reply With Quote
  #5
Old 08-21-2008, 03:57 AM
Dusk Blue Z Dusk Blue Z is offline
Yenko Contributing Member

Join Date: Jan 2004
Location: Crossville, TN
Posts: 135
Thanks: 31
Thanked 49 Times in 11 Posts
Default Re: original rear brakes shoes 68,69 camaro

Ed,

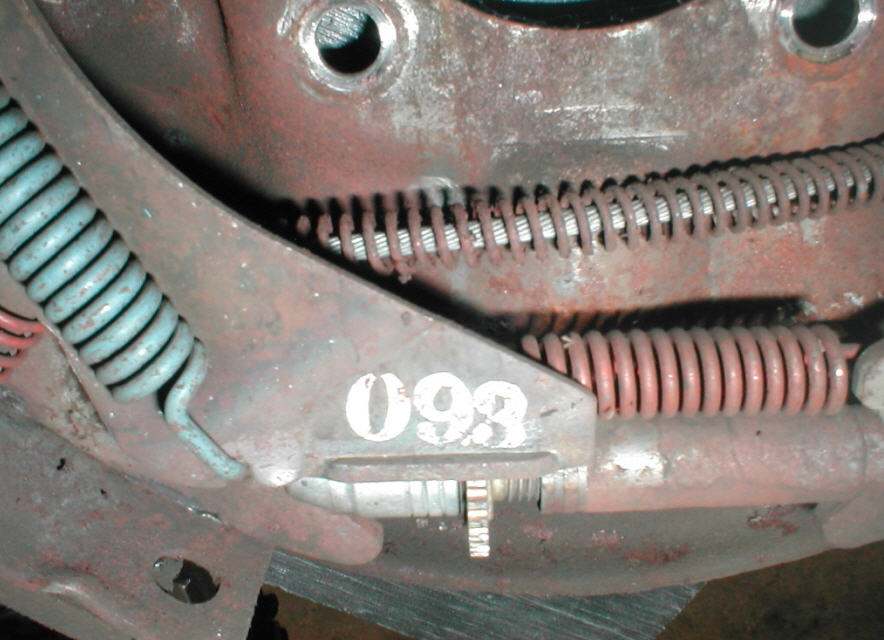

I found what I believe is a Julian date on the automatic brake self-adjuster. In my car it has 093 stamp painted on both the left and right sides which crosses over to April 3, 1969 which is the build date for my BV rearend.

I saw this same type of stamp in pictures that Brian from SCW posted a while ago. That got me to look a little harder at what I had.

I may be wrong on this but I would guess the backing plates were assembled off the rearend and then installed before the axles and the rear cover.

My question for John Z would be about the painting process of the rearend. Would the E brake cables, hard and soft brake lines have been on the rearend before the paint was applied?

Mike
Attached Images

Reply With Quote
  #6
Old 08-21-2008, 06:34 PM
enio45 enio45 is offline
Yenko Contributing Member

Join Date: Oct 2002
Location: Gilbert, AZ
Posts: 4,113
Thanks: 420
Thanked 368 Times in 214 Posts
Default Re: original rear brakes shoes 68,69 camaro

Thanks for the pic and info - humm, will have to look at my 69 Z as well.
