Default GM Door Jamb Bumpers

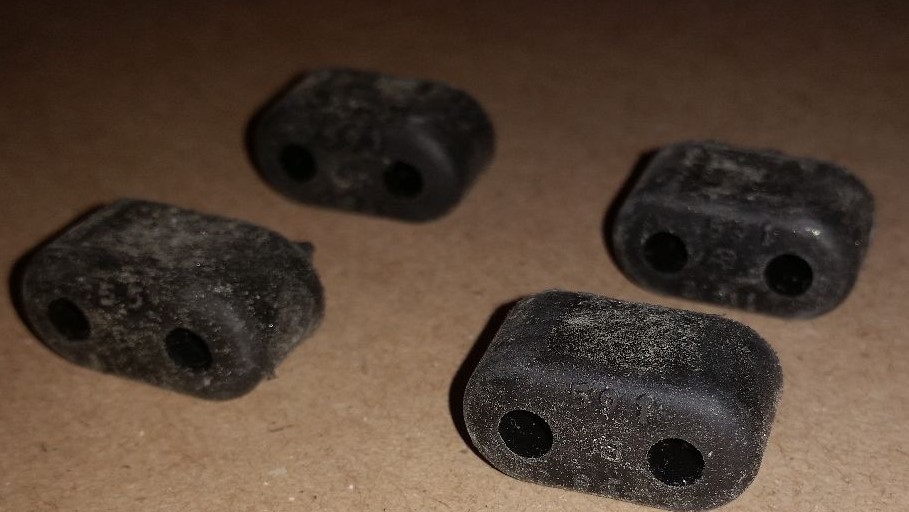

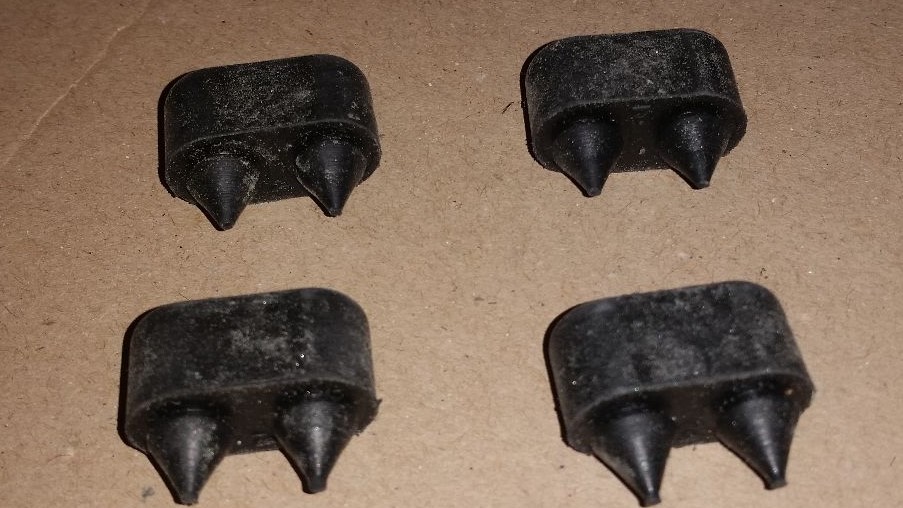

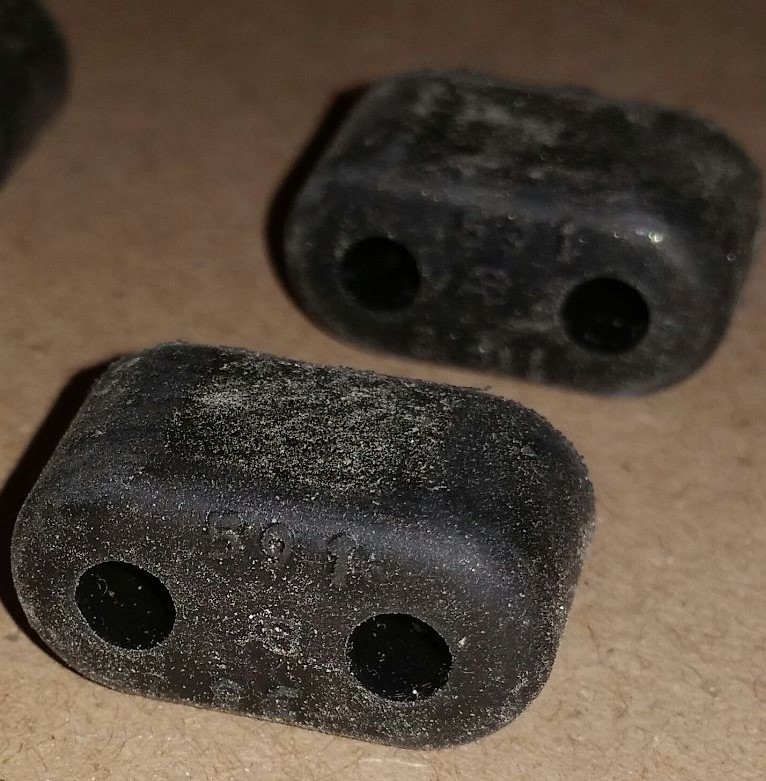

Have a quick question...I have a new, unused set of (4) small size
GM door jamb bumpers all with the embossed #591 on them. I wish
to sell them...what are they worth? Correct for Chevelle and other
models? See pics...

Thanks,
Sal
Attached Images

__________________
I currently own a 1969 Camaro SS350. Although the original drivetrain is long gone, this 4/speed car has a March '69 HC coded block with #041 heads. The transmission is an M20 Muncie #660 case and the rearend is a BS coded 12 bolt posi. Built in Van Nuys.
Reply With Quote
Attachments - The Supercar Registry image.jpg image.jpg Door jamb bumpers 3.jpg Door jamb bumpers 2.jpg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 01-07-2018, 06:33 PM
Spooky's Avatar
Spooky Spooky is offline
Yenko Contributing Member

Join Date: Oct 2014
Location: Massachusetts
Posts: 881
Thanks: 145
Thanked 96 Times in 65 Posts
Default

They still sell these at the dealer:

Door Shell Stopper - GM (20376243) List price is $1.53 each.

I do not know if they are an exact match to the old ones.

Scott
__________________
69 Camaro RS/SS X22 4speed NOM but working on something special
69 Camaro x11 355 crossram m22 12 bolt 3.73's
Reply With Quote
  #3
Old 01-07-2018, 08:57 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,240 Times in 578 Posts
Default

Those bumpers are from the late 80's.... I know because of the AB markings. I had to locate an NOS set for the 87.


If anybody has them... I am looking for a set of 4 head marked:

DH

7192

Thanks!
Reply With Quote
  #4
Old 01-07-2018, 09:04 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,240 Times in 578 Posts
Default

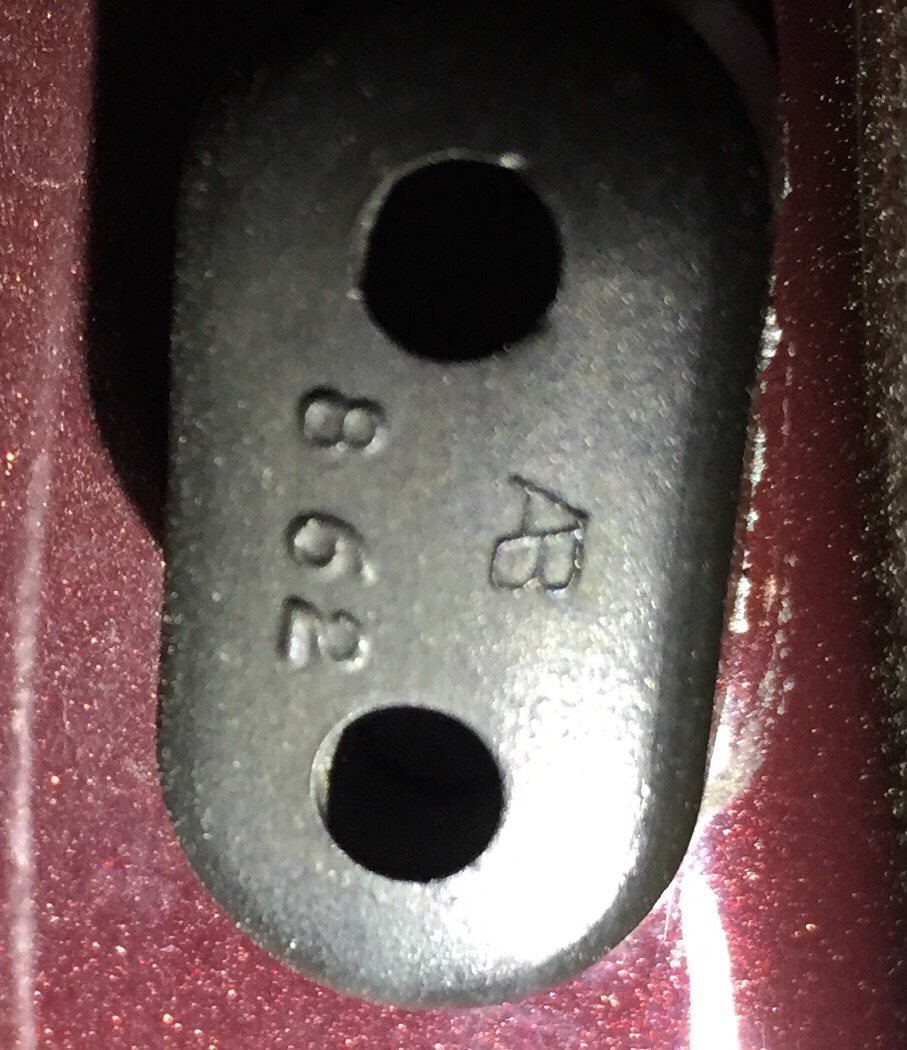

The earlier AB bumpers were single number embossed like these off my Wife's survivor 82 Z28
Attached Images

Reply With Quote
  #5
Old 01-08-2018, 10:20 AM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,240 Times in 578 Posts
Default

These just sold on flea bay:

https://www.ebay.com/itm/NOS-66-67-6...p2047675.l2557

LOL.. All the seller had to do is tell people they were embossed. Of the two NOS pictured in the early embossed dates shown were 1973 and 1972.

Later in the 1980's the Julian dating was reversed with the year at the end. In the 1960's the year was at the front.

So for my 1967 I am actually seeking 1967 dates. DH 7192 DH (MFG) 7=1967 192 Julian Date.

For My wife's 1982 the dating was reversed. AB 862 AB (MFG) 62 Julian Date 2=1982

Real factory correct and simple NOS are still different.
Reply With Quote
  #6
Old 01-08-2018, 11:56 AM
bluel78 bluel78 is offline
Senior Member

Join Date: Feb 2002
Location: Ellis. ks. usa
Posts: 269
Thanks: 7
Thanked 17 Times in 13 Posts
Default

Did the assembly line versions have smaller holes than the later replacements?
Reply With Quote
  #7
Old 01-08-2018, 12:27 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,240 Times in 578 Posts
Default

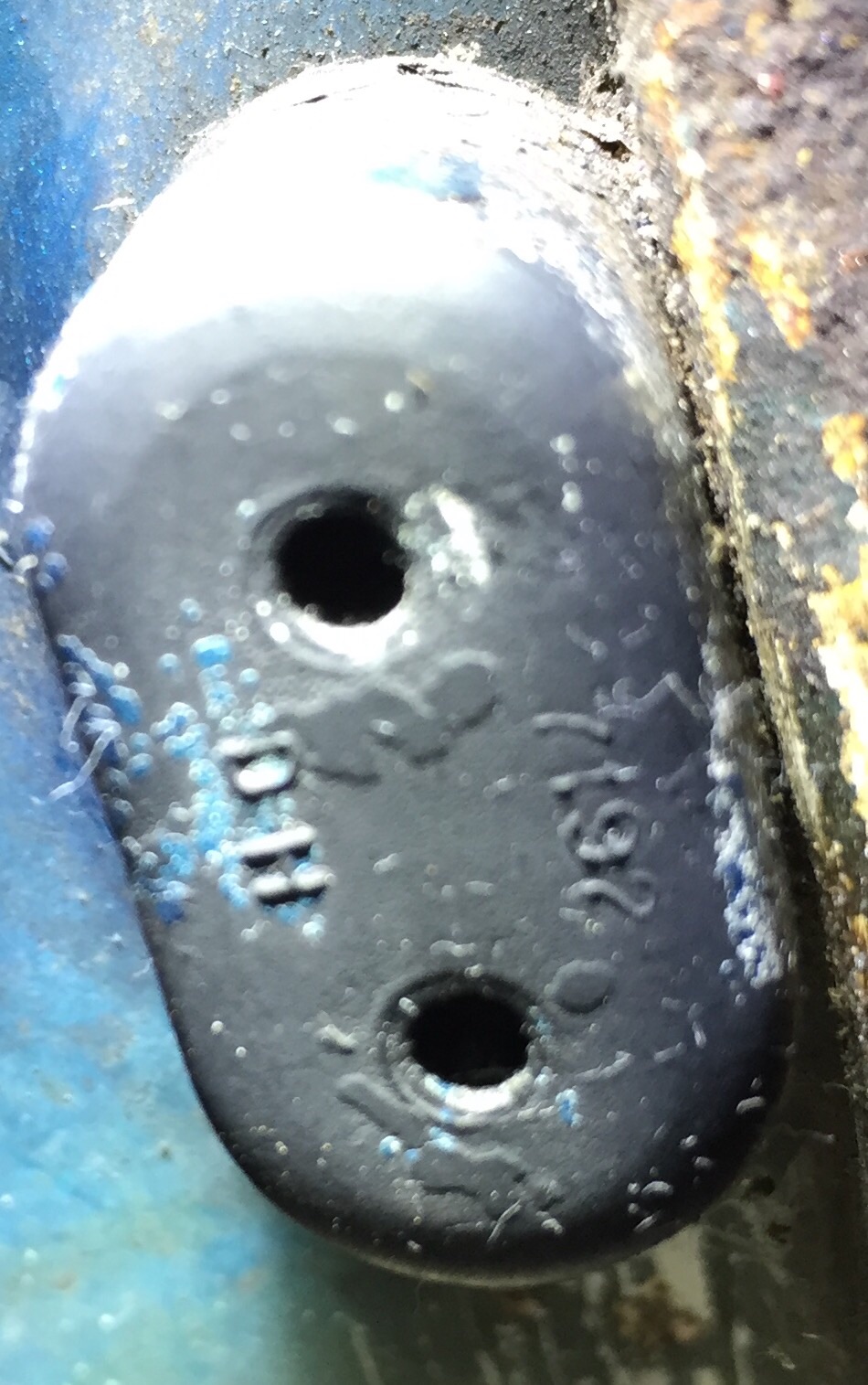

Based upon my observations Yes... Factory correct for 1967:

Even the NOS in the auction were the big hole type.
Attached Images


Last edited by 70 copo; 01-08-2018 at 12:29 PM.
Reply With Quote
  #8
Old 01-08-2018, 10:12 PM
69VN's Avatar
69VN 69VN is offline
Senior Member

Join Date: Jun 2012
Location: Phila., Pa.
Posts: 1,262
Thanks: 0
Thanked 22 Times in 18 Posts
Default

Also forgot to mention that on the inside portion of these bumpers
(between the nipples) there is an embossed number 3. Not quite sure
what that means either. Anyone?
