  #171
Old 09-15-2024, 11:34 PM
OneStopRestoration OneStopRestoration is offline
Yenko Contributing Member

Join Date: Feb 2005
Location: Washington, Illinois
Posts: 224
Thanks: 68
Thanked 939 Times in 159 Posts
Default Black and Orange Painting

Between the last 2 weekends painted some chassis parts along with some engine pieces. Did some rear end factory paint marks.
Attached Images

Reply With Quote
The Following 11 Users Say Thank You to OneStopRestoration For This Useful Post:
66BoxNova (09-16-2024), Dave Rifkin (09-19-2024), dykstra (09-16-2024), Hawkeye (09-15-2024), mhurd (09-16-2024), olredalert (Today), PeteLeathersac (09-18-2024), ragtop (09-16-2024), RPOLS3 (09-19-2024), Tenney (09-16-2024), Zman1969 (09-18-2024)
  #172
Old 09-16-2024, 10:35 AM
dykstra's Avatar
dykstra dykstra is offline
Yenko Contributing Member

Join Date: Oct 2009
Location: Washington, IL
Posts: 2,139
Thanks: 25,770
Thanked 1,983 Times in 962 Posts
Default

Looking great Rick!!
__________________
Dave Dykstra
1968 Camaro Palomino Ivory/Ivy Gold interior
-Delivered to Courtesy Chevrolet, Los Angeles, CA
2013 Corvette Grand Sport 60th Anniversary Edition
Arctic White/Diamond Blue interior
-Delivered to Bill Jacobs Chevrolet, Joliet, IL
NCRS#66003

“Education is what you get when you read the fine print. Experience is what you get if you don’t.”-Pete Seeger



Dykstra Motorsports
Reply With Quote
  #173
Old 09-18-2024, 04:20 PM
Zman1969 Zman1969 is offline
Yenko Contributing Member

Join Date: Feb 2010
Location: DFW Tx
Posts: 701
Thanks: 197
Thanked 140 Times in 57 Posts
Default

Rick I agree with Dave - Looking great! - question do you have any preference on the engine orange paint? reason I ask is whatever I used on my 302 I'm not happy with, I Don't remember what I used- Duplicolor? -as it turned almost flat orange after driving it I looked at a thread here and Seymour Hi-Tech EN48 was suggested, and I see several brands up on your shelf
thx Rich
__________________
69 RS/Z 302 VE3 Daytona
69 Chevelle SS 396 375
69 T/A clone LS6/6 speed
90 Formula 350
Reply With Quote
  #174
Old 09-19-2024, 12:53 AM
OneStopRestoration OneStopRestoration is offline
Yenko Contributing Member

Join Date: Feb 2005
Location: Washington, Illinois
Posts: 224
Thanks: 68
Thanked 939 Times in 159 Posts
Default Engine Paint

Hi Rich,

I have been using the Bill Hirsch stuff for all engine builds i have done. I have used everything from there Hemi orange for some 6 pack engines I built for some other guys as well as the Chevy orange for my cars. This last time i picked it up it seems to have a very long dry time, as in over a week or more. The parts still could not be touched a day after painting In the past it seems like it dired much faster. With Bill Hirsch it also seems that one time you get a quart and it is thin enough to spray and the next time im adding a reducer to because its to thick.

The reason i like it is it sprays easy, drys glossy, and after a motor is fired and gets a few heat cycles dulls down just a bit to more of a semi gloss to satin. Very durable and you can touch up, heat cycle an engine and never tell where you touched up.
Reply With Quote
The Following 6 Users Say Thank You to OneStopRestoration For This Useful Post:
chevyman0429 (09-19-2024), dykstra (09-19-2024), Hawkeye (09-19-2024), ragtop (09-19-2024), RPOLS3 (09-20-2024), Zman1969 (09-23-2024)
  #175
Old 09-21-2024, 11:17 PM
OneStopRestoration OneStopRestoration is offline
Yenko Contributing Member

Join Date: Feb 2005
Location: Washington, Illinois
Posts: 224
Thanks: 68
Thanked 939 Times in 159 Posts
Default More Body work and my thoughts on NOS sheetmetal

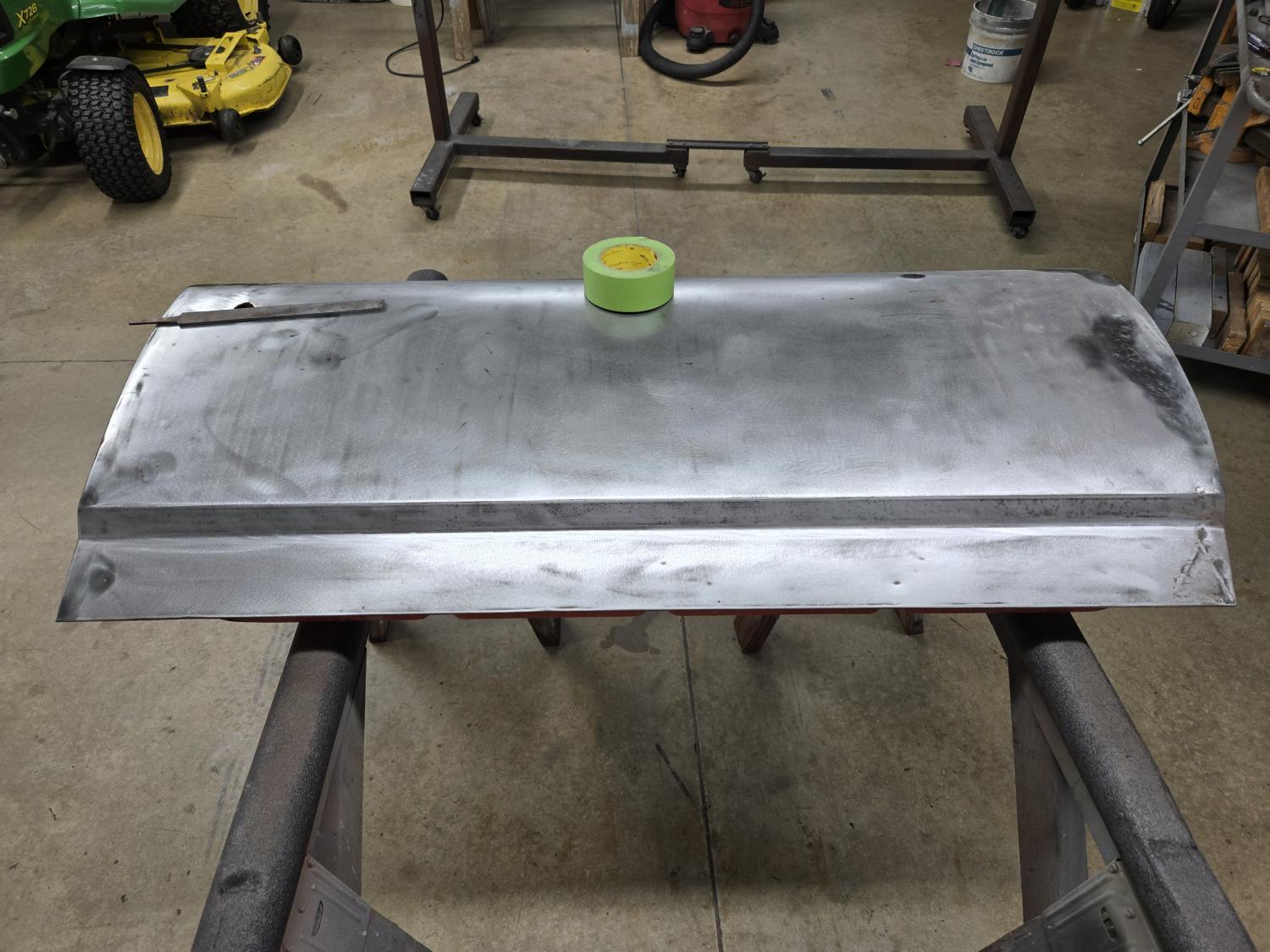

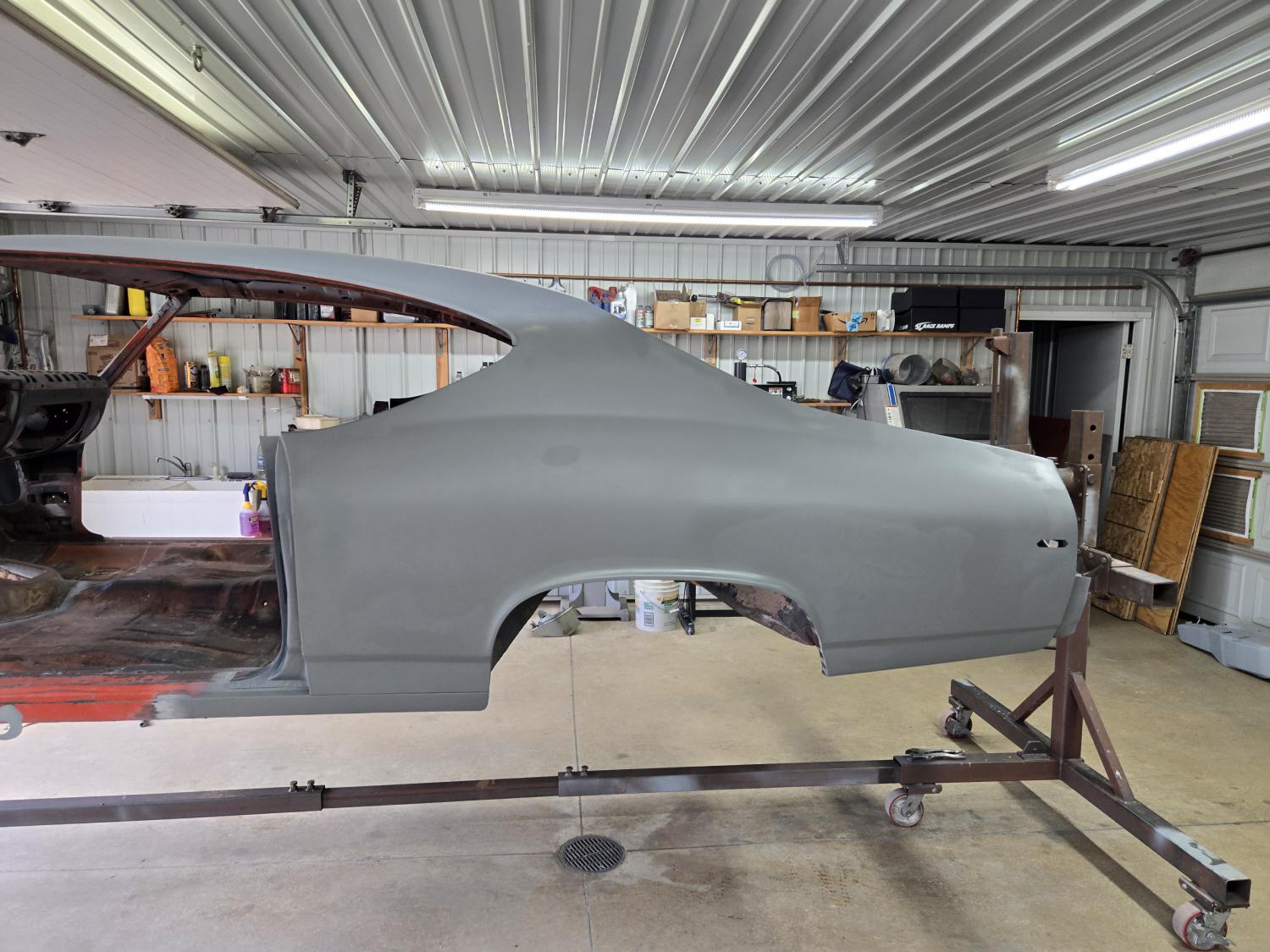

This is just a glimpse into the time commitment required for body work. All panels are stripped and dents worked out, followed by filler to smooth out areas. This gets followed by epoxy primer. Something else that is a pet peeve, NOS sheetmetal is does not mean perfect, and in most cases the parts you get had flaws. This quarter proved to have some serious issues behind the back wheel. Worked out the metal best i could. Also managed to get the tail panel worked, and mudded for a first sand. If your wondering why all mud, its because much like rockers you will never find a straight one. Just the way it is.
Attached Images

Reply With Quote
The Following 18 Users Say Thank You to OneStopRestoration For This Useful Post:
427 (Today), 66BoxNova (09-23-2024), 69M22Z (09-22-2024), chevyman0429 (09-22-2024), Dave Rifkin (09-23-2024), dykstra (09-22-2024), gtomike1967 (09-22-2024), Hawkeye (09-22-2024), L78_Nova (09-23-2024), McCune (09-22-2024), olredalert (09-22-2024), PeteLeathersac (09-22-2024), ragtop (09-22-2024), RPOLS3 (09-22-2024), scuncio (09-21-2024), Tenney (09-22-2024), Tuna Joe (09-23-2024), Zman1969 (09-23-2024)
  #176
Old Yesterday, 10:44 PM
Stihl Stihl is online now
Member

Join Date: Aug 2017
Posts: 82
Thanks: 2,226
Thanked 40 Times in 33 Posts
Default

Great progress on the car. You do quality work
Reply With Quote
