#3
07-15-2022, 10:43 AM
|
||||
|
||||

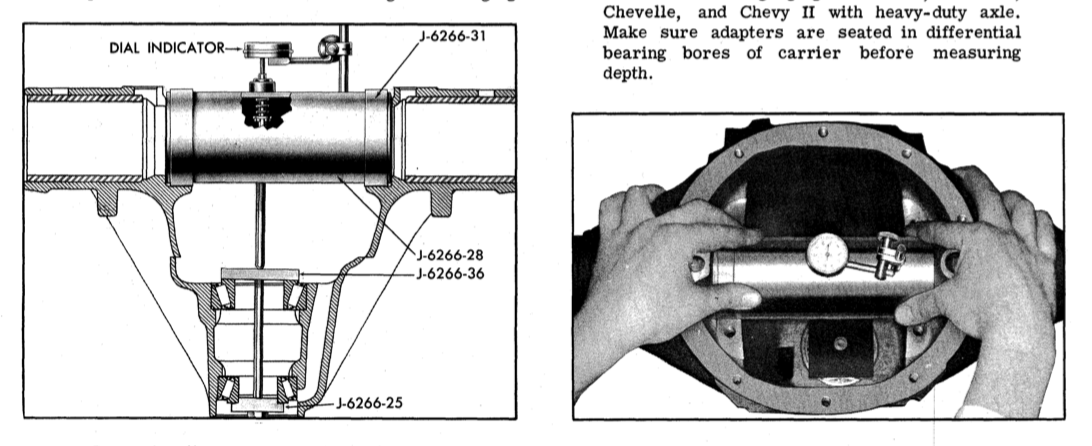

Reading the contact pattern is the only sure way of setting pinion depth for new gears. If you are setting up a used gear then the drive side contact pattern will not help you because of wear on the teeth. Usually you can go by the coast side to read the pattern and get close enough.
__________________
Freddie 1969 Camaro RS/SS396 (427) 4 speed
|
| The Following User Says Thank You to big gear head For This Useful Post: | ||
jbtech (07-17-2022) | ||
