WTB - S-W Gauges

[Pat O'Connell]

Looking for a set of S-W greenline gauges (oil, amp, water) for my '69 Yenko, in good working condition. Any leads appreciated!

[Charley Lillard]

I think Stewart Warner is making them again and I think they are pretty much exactly like the orig ones.

[firstgenaddict]

I saw them as well Charlie, however on the SW website it is impossible to find them listed... as of 2 weeks ago.

[169indy]

Stewart Warner Reintroduces Green Line™ Gauges for Muscle Car Enthusiasts

LANCASTER, PA.—September, 2006. Stewart Warner has reintroduced its Green Line™ gauges in recognition of growing consumer demand for authentic instrumentation for muscle and classic cars. Derived from Stewart Warner’s Custom-Deluxe™ line, Green Line™ gauges are named for the instantly recognized green trim ring that surrounds a silver disk in the center of the gauge. These gauges were originally used in Ford Shelby Cobra Mustangs, Yenko Camaros and other high performance cars in the 1960s.




Green Line™ gauges feature the bright orange-red pointers with silver hubs, and classic easy-to-read graphics. Of particular note, the ammeter includes the original slotted style pointer configuration.

FEATURES

Updated gauge motor ensures compatibility with today's performance vehicles and smooth pointer operation over the life of product
Authentic Green Line™ graphics and content
Distinctive silver disk in center of gauge
Virtually identical to the originals—the ideal solution for consumers seeking authenticity
Bright orange pointer with silver hub
2-5/8” and 2-1/16” units available; fits typical panel cut-outs
Download Green Line™ PDF here.

Contact Tim Joyce @1-801-794-1497; [email protected]

http://maximatech.com/index.php?page=news&id=6

I contacted Tim listed above and he indicated that Auth SW dealers should be able to place orders at this time and SUMMIT will be listing gauges also.

Click on the above link and download the GREEN LINE PDF for applications and part numbers.

The Tachometer is still under concideration. TIM asked for input from the consumers on which tach they would be most interested in having reproduced. He also indicated that he is interested in input via E-mail from the enthusisasts to provide evidence of demand for the product to justify its production. So let him know you are out there and wanting this product.

They would like to hear about the particular S/W Model # tach that would be desired to be reproduced.
I assumed it would be the Model 970 Custom face green line w/ pedestal mount 8K with appx 270 degree sweep?

Jim

[427freak]

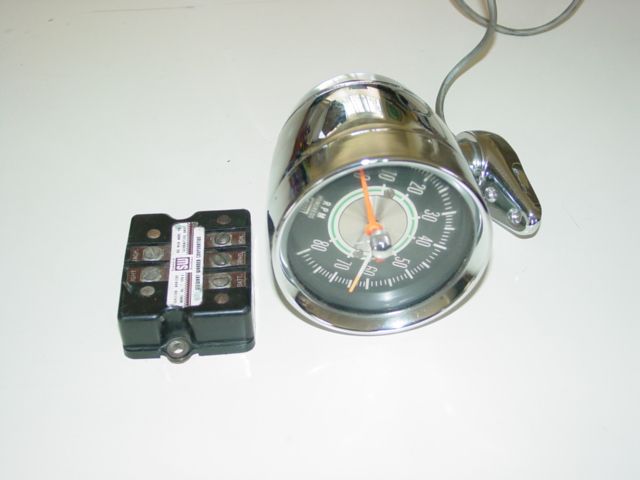

Is this it?

[Born30YrsLate]

a set on ebay... Stewart Warner Custom Face Gauges

[Pat O'Connell]

Thanks, Charley, I appreciate it! I'll check them out.

[Born30YrsLate]

I haven't seen the new SW gauges...are they the smaller (2 1/16 I believe) or the large ( 2 5/8) or both?...I wasn't able to find them on their website either?...

[169indy]

Per Mary Clar of Stewart Warner (Maxima Technologies) 1-800-676-1837 The green line gauges will be avail via auth SW dealers around the end of OCT-Early Nov 2006.
They are only manufacuring the AMP [690-J] and OIL(Mech)[691-L] 2-5/8" at this time. Plans are possibly in the works for a 3-3/8" 8,000rpm tach [531-CC]in the future should demand arise. Pricing was not avail at the time of my inquiry. The S&W web site does not have any information yet. Contact Maxima/S&W for a product sheet to be mail to you for gauge data. Contact them for dealer inventories as they will be able to tell you who has these when they get them out to the distr's.
I saw an ad for the line in Hot Rod and held my order for the Power series until the green line becomes available.

Hope this info is of some assistance.

Jim

[Charley Lillard]

They must have already sent out display models because I saw them in a vendor booth at a Goodguys car show.
