radiator letter codes..

**WILMASBOYL78** · #1 01-03-2007, 04:46 AM

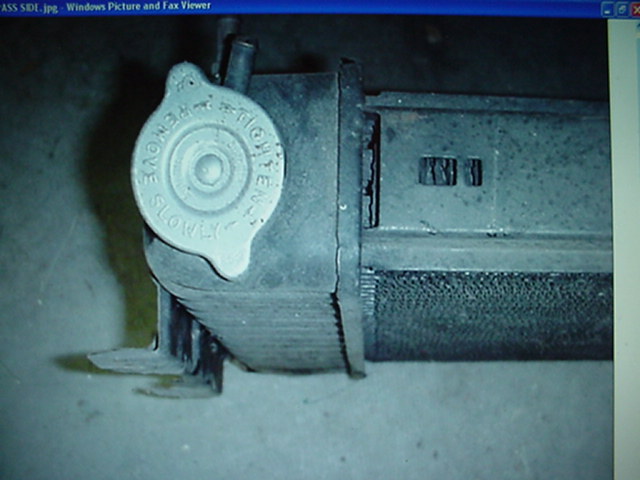

Sorting out some BB radiators and need some help with the letters....both out of 70 BB Novas..th400....pass side tank has Harrison at the top...then C H then E and the other F...no metal tags attached...does the E and F signify a certain month?? are there any other spots to look for part numbers or codes??

Thanks, wilma

**WILMASBOYL78** · #2 01-03-2007, 05:14 AM

Did some looking in old posts and found the answer...as usual many thanks to the knowledge gurus...

wilma

**Mr70** · #3 01-03-2007, 05:26 AM

If the letter E-May & F-June, are inbetween the ribs then that's the month code.
The letter I was not used to date the Tanks either that I have seen,so M was December.
If there was a suffix tag attached,it would have the actual radiators part # on it.
Kinda difficult to find anymore specific application info w/o the suffix tag attached.
Your 1970 L-78 Nova Radiator would have had a ZE suffix tag,part #3017838.
That CH tank would've been found on the TH400 1969 Big Block Camaro too.

**WILMASBOYL78** · #4 01-03-2007, 05:37 AM

Thanks Rick...

wilma

JHS · #5 01-03-2007, 05:23 PM

[ QUOTE ]
Sorting out some BB radiators...

[/ QUOTE ]

Are any of these rads for sale? I am in need of a correct BB rad for my '70 L78 Nova w/TH400??

Kim_Howie · #6 01-04-2007, 01:29 AM

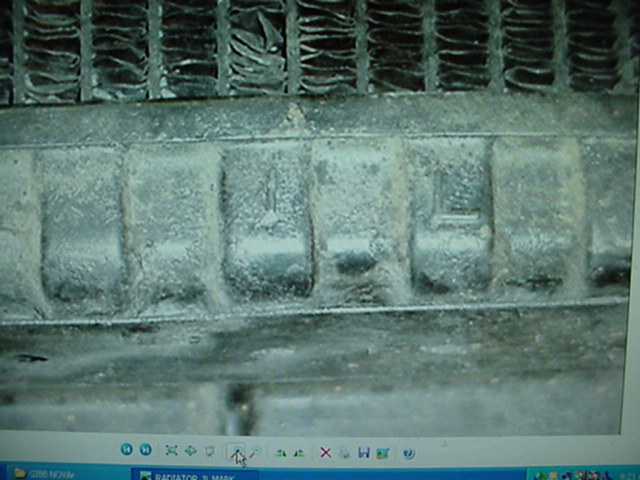

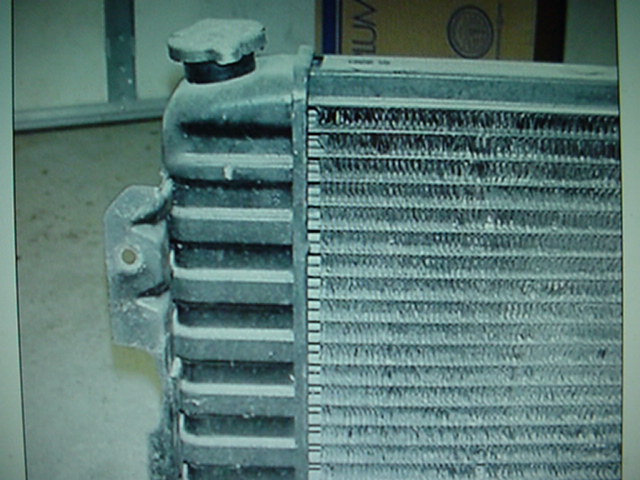

Rick, The rad that was I think orginal to my gibb nova also C H on it with a small E in the middle. Maybe it wasn't the org rad??

Kim_Howie · #7 01-04-2007, 01:31 AM

It also had a I L on the other tank??

**WILMASBOYL78** · #8 01-04-2007, 02:50 AM

Kim, according to the CRG chart the IL code is 67-69 BB auto...but the 67-68 big tank had OM....when you think about how few 68 BB Nova auto cars there were (L34/L78) it would make sense that they would have used the Camaro ones they had on hand

the Gibb cars were a late production run and perhaps the radiators were already in the works for the 69 model year..that would explain the 69 code....maybe drop an e-mail to Wayne...he might have some info from John's car.

wilma

Kim_Howie · #9 01-04-2007, 06:10 PM

With the Gibb cars being automatics that makes since.

Kim_Howie · #10 01-04-2007, 06:17 PM

Tom they were also 4-core instead of 3-core The 3-core was standard in a 68-375 nova. Being a auto they would have had to use a auto tank also.
