Default LS6 Block Stamping Question

Need some help on a little mystery.

1970 454 LS6

Block casting code: 3963512
Date Code: E 18 70 (May 18th 1970)
Engine Numbers: T0616CRV
Partial VIN: 18B208611

Head Casting Codes: 3964291
Head Date Code: E 7 70 / E 8 70 (May 7th / 8th 1970)


Engine decoder results:

Engine assembly plant: T= Tonawanda, New York.
Engine was assembled in June, day 16.
Engine assembly code "CRV" was used for the following vehicles:

1970 Chevelle 454cid Manual trans 450hp CRV


What is wrong with that picture? The VIN has an 8 for the 2nd digit.. ???? Should be a zero for 1970. The VIN sure looks to be 100% original. Explination???

Could the 8 be a mis-stamp from the factory?

Thank you for the help

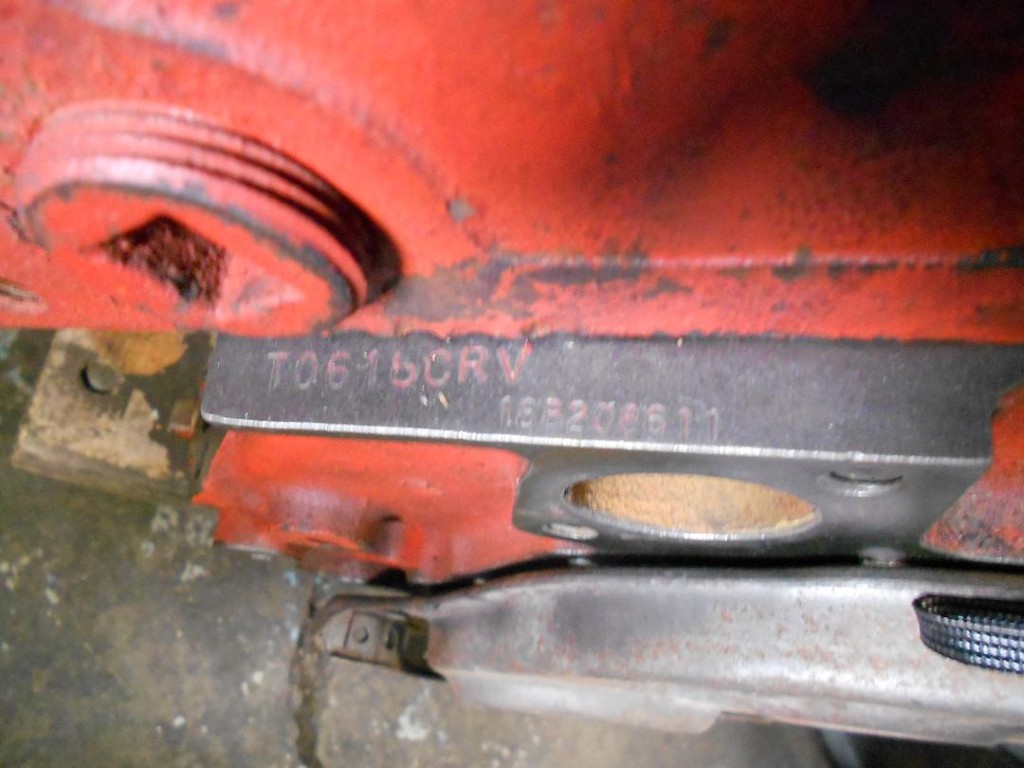

Attached Images

__________________
Bill O'Brien

1974 Jeep CJ5 - 304 V8, Edelbrock Intake, Holley 650, MSD Ignition, Patriot Headers
Reply With Quote
Attachments - The Supercar Registry 32986.jpg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 10-06-2012, 04:52 PM
Ls6 Ragtop Ls6 Ragtop is offline
Yenko Contributing Member

Join Date: Nov 2007
Location: MA
Posts: 596
Thanks: 25
Thanked 110 Times in 33 Posts
Default Re: LS6 Block Stamping Question

Billy,
Baltimore is a plant known in 70 to have used 3 different variations of v.i.n. stampings. 10BXXXXXX, 18BXXXXXX, and 188XXXXXX are all known real partial vin stamping styles we've documented over the years. Most of the odd stampings seemed to be early in the production run but I've learned a long time ago to never say never. The pic on my monitor is not clear enough for me to comment on originality, but from what it looks like it's possibly OK.
Chris
Reply With Quote
  #3
Old 10-06-2012, 06:51 PM
Rixls6 Rixls6 is offline
Yenko Contributing Member

Join Date: May 2006
Location: between Chicago and Milwaukee, IL
Posts: 2,684
Thanks: 22
Thanked 120 Times in 45 Posts
Default Re: LS6 Block Stamping Question

My concern on this one would be the first "6" in T0616CRV. I haven't seen a Tonowanda stamp with a curved leg in the 6 before.
__________________
Rick
69 Chevelle SS396 Silver L78 M21 Post Sedan (Berger Chev.)
69 Chevelle SS396 Black L78 4-speed 4.10 Post Sedan

Don't text and drive.
Somebody's life may depend on it!
Reply With Quote
  #4
Old 10-06-2012, 07:03 PM
AutoInsane AutoInsane is offline
Senior Member

Join Date: Nov 2001
Location: Katy - TX
Posts: 942
Thanks: 41
Thanked 9 Times in 8 Posts
Default Re: LS6 Block Stamping Question

So the block was cast in Tonawanda and built and stamped with a partial VIN in Baltimore?


Thanks for the education!
__________________
Bill O'Brien

1974 Jeep CJ5 - 304 V8, Edelbrock Intake, Holley 650, MSD Ignition, Patriot Headers
Reply With Quote
  #5
Old 10-06-2012, 08:57 PM
Ls6 Ragtop Ls6 Ragtop is offline
Yenko Contributing Member

Join Date: Nov 2007
Location: MA
Posts: 596
Thanks: 25
Thanked 110 Times in 33 Posts
Default Re: LS6 Block Stamping Question

Billy,
Cast and assembly dated with I.D. suffix in Tonawanda, v.i.n.
stamp is always done at the final car's assembly plant. I have seen the curved 6 before, and given the 2 6's used in this engine's assembly date not unbelievable. I would want a clearer picture of the stamp pad before I'd comment on it's possible originality.
Chris
Reply With Quote
  #6
Old 10-06-2012, 11:10 PM
69 Post Sedan's Avatar
69 Post Sedan 69 Post Sedan is offline
Yenko Contributing Member

Join Date: Dec 2007
Location: Janesville, WI
Posts: 3,577
Thanks: 1,062
Thanked 497 Times in 177 Posts
Default Re: LS6 Block Stamping Question

I have an issue with how close the &quot;V&quot; appears to be next to the head as the head is on the block when they stamp it. I see this quite often. [img]<<GRAEMLIN_URL>>/hmmm.gif[/img]

Unless it's the way the picture is taken. [img]<<GRAEMLIN_URL>>/dunno.gif[/img]

Kurt
__________________

1969 SS396 Post Sedan Delivered to Van-T Topeka KS
MCACN Day2 Concourse Gold Award

1965 VW El Lobo Dune Buggy built in the mid 70’s for the Iowa Shriners

1968 Schwinn Orange Krate
1969 Schwinn Pea Picker
1968 Schwinn 5-Speed
1970 Schwinn 3-Speed Deluxe
1972 Schwinn 10-Speed Continental
1973 Schwinn 5-Speed Suburban
All Original Paint Bikes
Reply With Quote
  #7
Old 10-06-2012, 11:31 PM
Ls6 Ragtop Ls6 Ragtop is offline
Yenko Contributing Member

Join Date: Nov 2007
Location: MA
Posts: 596
Thanks: 25
Thanked 110 Times in 33 Posts
Default Re: LS6 Block Stamping Question

Kurt,
I don't believe that's correct regarding when Tonawanda stamped the blocks. Pics I have seen show the heads not installed at the time of stamping. I've also seen original motors with the stamping very close to the head. Obviously the vin stamp can't be too close to the head as they definitely are on for that proceedure.
Chris
Reply With Quote
  #8
Old 10-07-2012, 12:57 AM
Verne_Frantz Verne_Frantz is offline
Senior Member

Join Date: Jul 2003
Location: Central New Jersey
Posts: 3,793
Thanks: 34
Thanked 240 Times in 123 Posts
Default Re: LS6 Block Stamping Question

If someone was trying to fake it, why would they use two different 6s?

Verne [img]<<GRAEMLIN_URL>>/hmmm.gif[/img]
Reply With Quote
  #9
Old 10-07-2012, 02:28 AM
m22mike's Avatar
m22mike m22mike is offline
Senior Member

Join Date: Jan 2006
Location: West of CAK
Posts: 5,001
Thanks: 766
Thanked 840 Times in 406 Posts
Default Re: LS6 Block Stamping Question

I concur with Chris, heads not installed when pad was stamped.
Reply With Quote
  #10
Old 10-07-2012, 12:27 PM
Rixls6 Rixls6 is offline
Yenko Contributing Member

Join Date: May 2006
Location: between Chicago and Milwaukee, IL
Posts: 2,684
Thanks: 22
Thanked 120 Times in 45 Posts
Default Re: LS6 Block Stamping Question

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Verne_Frantz</div><div class="ubbcode-body">If someone was trying to fake it, why would they use two different 6s?

Verne [img]<<GRAEMLIN_URL>>/hmmm.gif[/img] </div></div>

Chris has already said that he's seen the 2 different 6's. Works for me.
__________________
Rick
69 Chevelle SS396 Silver L78 M21 Post Sedan (Berger Chev.)
69 Chevelle SS396 Black L78 4-speed 4.10 Post Sedan

Don't text and drive.
Somebody's life may depend on it!
