need a '69 A/M radio wireing schematic,please

budnate · #1 03-23-2005, 01:13 AM

need to bench this dude and nothing in my books and the radio fix it shops online did not want to bothered...
anyone know left to right how the green and black speaker wires go and the ground/power wires...some nice guy yanked the factory plug and all I have is 4 loose wires.

Thnx Bud.

**drdave69** · #2 03-23-2005, 02:38 AM

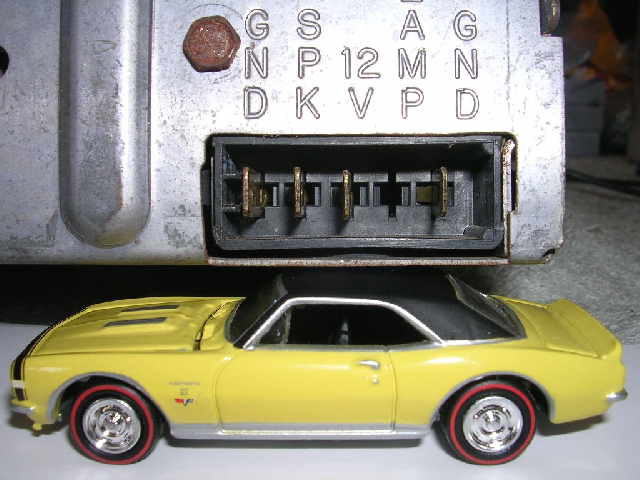

Left to right - GND (black that goes with speaker wire) : SPK (green wire) : 12V (yellow wire) : AMP (empty) : GND (black wire that goes with yellow)
Hope this helps.

budnate · #3 03-23-2005, 05:05 AM

Man I gotta tell ya guys when I mess up its a dandy....geez!! I stared at that thing for 20 min..somehow it did not jump out to go top to bottom..what a goon!!..LOL brews are on me..

DarrenX33 · #4 03-23-2005, 05:12 AM

HEY! That's one great beer. Too bad you can only get it in Texas.

budnate · #5 03-23-2005, 06:07 AM

ok.it powers up but no sound...I have a good handle on electricity..do we have anyone that has worked on these I have some basic question on speaker output from the deck..what kind of electrical signal makes it go?? and does the speaker body need to be grounded as well as the deck itself..I plugged a antenna into it and grounded the ant back to the body and power source still no noise...whats the deal with these things????

Thnx Bud.

**drdave69** · #6 03-23-2005, 03:31 PM

It's very easy to bench test. I bought a cheap 4 inch speaker, antenae and cobled up some wire with "roach" clips. Hook everything up to a 12 volt battery on your bench to test it. If it still doesn't work the radio could have a blown output.
