Default Harrison radiator questions

Questions for the Harrison radiator professionals here. The consensus is atleast for the 1970 model year that harrison radiator drain valves were painted with the radiators true or false. Also were there different vendors who supplied drain valves for rhe radiators? I have 2 of the same cars with the same radiators. One has a fluted drain with outward facing tabs to turn the other is not fluted with the same outward facing tabs to turn. Can anyone help with these answers with what's correct?"
__________________
1970 L78 camaro Cortez silver ralley sport under restoration


1970 L78 camaro cranberry red standard black interior original drivetrain.

Last edited by ronzz572; 07-27-2022 at 09:46 PM.
Reply With Quote
Attachments - The Supercar Registry yenko buck build1.jpg yenko buck build.jpg C 035.jpg C 035 (2).JPG
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 08-03-2022, 04:36 PM
ronzz572 ronzz572 is offline
Yenko Contributing Member

Join Date: Oct 2010
Location: Imperial pa.
Posts: 555
Thanks: 20
Thanked 112 Times in 64 Posts
Default

Can anyone help me with this particular answer? Im sure someone here probably has experience with this answer. Thanks in advance.
__________________
1970 L78 camaro Cortez silver ralley sport under restoration


1970 L78 camaro cranberry red standard black interior original drivetrain.
Reply With Quote
  #3
Old 08-04-2022, 01:54 AM
Ls6 Ragtop Ls6 Ragtop is offline
Yenko Contributing Member

Join Date: Nov 2007
Location: MA
Posts: 588
Thanks: 21
Thanked 92 Times in 30 Posts
Default

Hi Ron,
My experience with survivor 1970 Chevrolet radiators is that the petcock or drain valve was installed after paint. This is due to not seeing any evidence of paint on this part on the 70 Chevelles I've had the opportunity to inspect and service.
Another part that i have had the opportunity to study was an NOS radiator for a 70 A body that although painted from the factory had a cardboard plug where the drain plug would be, so that could explain it if Harrison shipped the radiator to the assembly plants the same way? The only 70 Camaro radiators I've had the opportunity to inspect did not have the barrel feature that is typical on 70 A body radiators. Don't know why they would be different but appear that some at least were.
The flare on the handle of the valve should be facing the engine.
Hope this helps.
Reply With Quote
  #4
Old 08-04-2022, 02:08 PM
ronzz572 ronzz572 is offline
Yenko Contributing Member

Join Date: Oct 2010
Location: Imperial pa.
Posts: 555
Thanks: 20
Thanked 112 Times in 64 Posts
Default

Thanks Chris.
__________________
1970 L78 camaro Cortez silver ralley sport under restoration


1970 L78 camaro cranberry red standard black interior original drivetrain.
Reply With Quote
  #5
Old 08-04-2022, 02:36 PM
Diamond_Don Diamond_Don is offline
Member

Join Date: Nov 2015
Location: Vancouver, Canada
Posts: 95
Thanks: 24
Thanked 32 Times in 17 Posts
Default

Here's a picture from my 1970 big block Harrison radiator if it helps.
Attached Images

Reply With Quote
  #6
Old 08-04-2022, 03:07 PM
ronzz572 ronzz572 is offline
Yenko Contributing Member

Join Date: Oct 2010
Location: Imperial pa.
Posts: 555
Thanks: 20
Thanked 112 Times in 64 Posts
Default

Quote:
Originally Posted by Diamond_Don View Post
Here's a picture from my 1970 big block Harrison radiator if it helps.
Thanks for your picture, Are you somewhat positive that's the original drain valve? I have 2 1970 L78 camaros both have the same forward facing valve tabs correct for a 1970. But one has the barrel flutted drain like yours and the other is without the barrel drain. Most likely there may have been different vendors for the valves. That one of the answers I'm trying to sort out. Also if they were painted. I feel they were installed when the radiator was installed in the car. So no paint should applied when properly restored. Also paint will prevent it from turning on the threads to open properly. GM always protected parts to prevent a service problems.
__________________
1970 L78 camaro Cortez silver ralley sport under restoration


1970 L78 camaro cranberry red standard black interior original drivetrain.
Reply With Quote
  #7
Old 08-04-2022, 05:29 PM
L16pilot L16pilot is online now
Yenko Contributing Member

Join Date: Mar 2016
Location: Maryland
Posts: 435
Thanks: 540
Thanked 465 Times in 156 Posts
Default

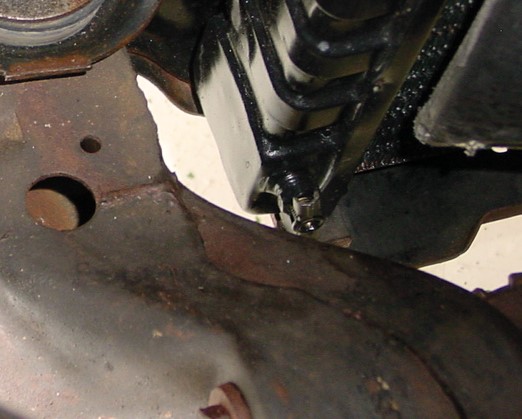

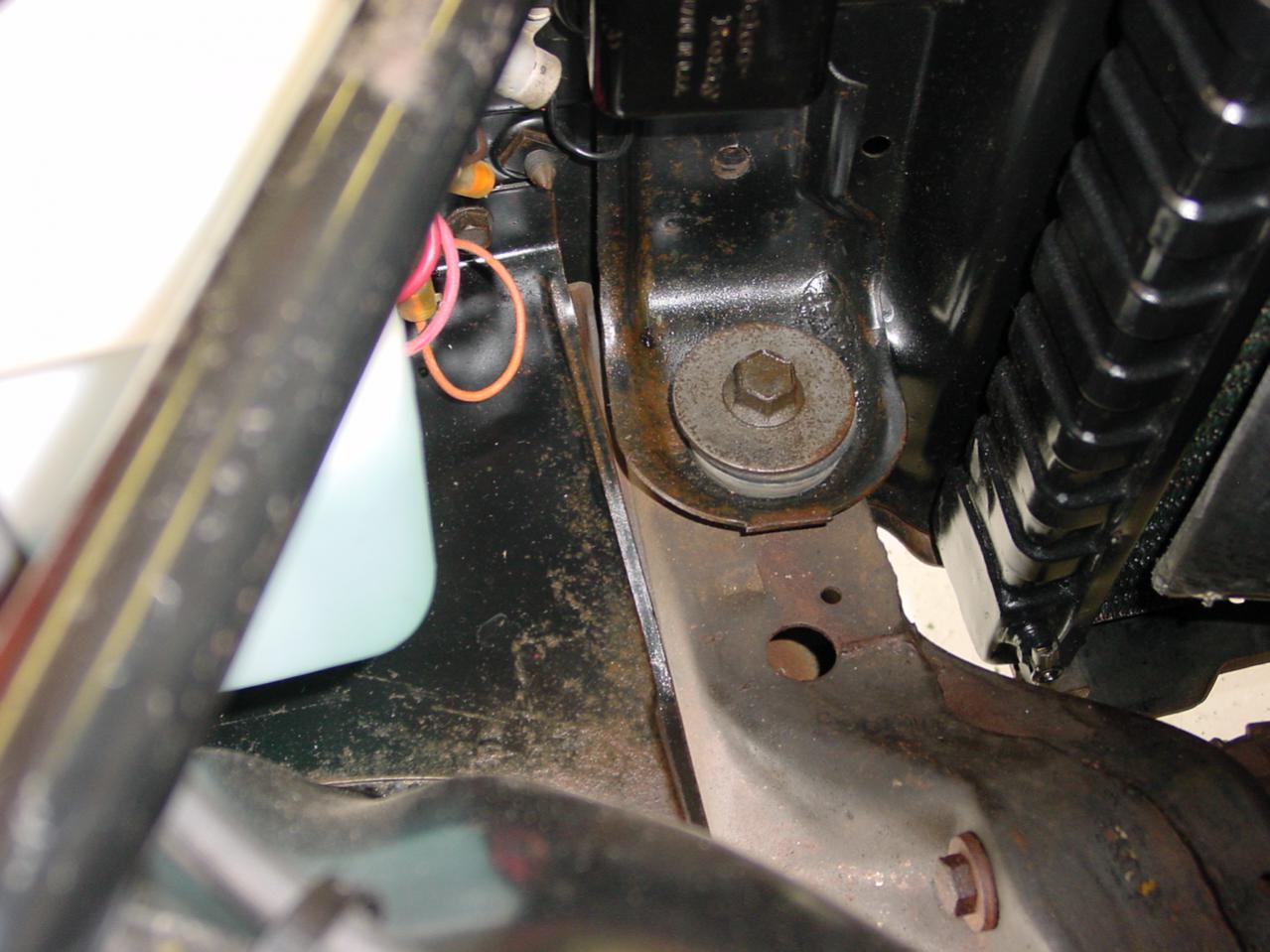

Here's a photo from a 22k original mile Norwood 04B 1970 Z28 formerly owned by Jack Seymour. Clearly has black paint on the petcock and the "ears" face the radiator. Original pic and zoomed-in pic.
Attached Images

__________________
Steve Nuwer

1970 Z28, Norwood 03A, 48 48, 723 Int, M20, COO, 2021 Legends Platinum restored
1970 L78, Norwood 04C, 17 17, 711 Int, M21, COO, born-with drivetrain project.
1972 Z28, Norwood 11C project, born-with drivetrain, 26 26, 775, M20, CGG project
1970 Z28, Norwood 05C, 48 G, 720 Int, M21, COZ, Original Unrestored (SOLD)
www.2ndGenZ.com
Reply With Quote
  #8
Old 08-04-2022, 07:33 PM
ronzz572 ronzz572 is offline
Yenko Contributing Member

Join Date: Oct 2010
Location: Imperial pa.
Posts: 555
Thanks: 20
Thanked 112 Times in 64 Posts
Default

Quote:
Originally Posted by L16pilot View Post
Here's a photo from a 22k original mile Norwood 04B 1970 Z28 formerly owned by Jack Seymour. Clearly has black paint on the petcock and the "ears" face the radiator. Original pic and zoomed-in pic.
I guess this throws a curve ball into this answer. So now we may be looking at 3 different drain valves for 1970. And a car that has one with black paint. Are there any pictures of Charley's former low milage 1970 Ls6 chevelle that show a drain valve?
__________________
1970 L78 camaro Cortez silver ralley sport under restoration


1970 L78 camaro cranberry red standard black interior original drivetrain.
Reply With Quote
  #9
Old 08-06-2022, 01:43 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,233 Times in 577 Posts
Default

I guess everybody commenting here is assuming that the radiators shipped from Harrison NY were shipped painted and NOT painted at the final assembly plant?
Reply With Quote
  #10
Old 08-06-2022, 01:53 PM
ronzz572 ronzz572 is offline
Yenko Contributing Member

Join Date: Oct 2010
Location: Imperial pa.
Posts: 555
Thanks: 20
Thanked 112 Times in 64 Posts
Default

Quote:
Originally Posted by 70 copo View Post
I guess everybody commenting here is assuming that the radiators shipped from Harrison NY were shipped painted and NOT painted at the final assembly plant?
Multiple questions here Phil for the correct style drain valves. We're there multiple vendors since there are different types? Were they painted with the radiators? Were the drains installed during assembly line process and not painted.
__________________
1970 L78 camaro Cortez silver ralley sport under restoration


1970 L78 camaro cranberry red standard black interior original drivetrain.
Reply With Quote
