Default 1969 camaro fuel tank stencil

Does anyone have a pic of an original fuel tank logo?The company logo that supplied the steel for the tank. Who sells the most correct stencil?thanks John
Reply With Quote
Attachments - The Supercar Registry 48748.jpg 48745.png
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old 06-17-2016, 01:20 PM
HawkX66's Avatar
HawkX66 HawkX66 is offline
Senior Member

Join Date: Sep 2015
Location: VA/MA
Posts: 1,021
Thanks: 1,015
Thanked 225 Times in 134 Posts
Default Re: 1969 camaro fuel tank stencil

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: 302moz</div><div class="ubbcode-body">Does anyone have a pic of an original fuel tank logo?The company logo that supplied the steel for the tank. Who sells the most correct stencil?thanks John </div></div>
I've never heard of such a thing and I've never seen an original tank with a logo on it. My original only had the date code stamped on the seam, nothing else. Where did you hear or see that there was a logo?
__________________
-Dave
Semper Fi!

69 Camaro SS396 L34 X66
Reply With Quote
  #3
Old 06-17-2016, 01:49 PM
William William is offline
Yenko Contributing Member

Join Date: Jun 2001
Location: New Berlin WI USA
Posts: 2,649
Thanks: 252
Thanked 2,881 Times in 804 Posts
Default Re: 1969 camaro fuel tank stencil

The stencil was on the raw steel roll and randomly appeared on some tanks. Not necessary to duplicate it.
__________________
Learning more and more about less and less...
Reply With Quote
  #4
Old 06-17-2016, 01:49 PM
Mr70's Avatar
Mr70 Mr70 is offline
Yenko Contributing Member

Join Date: Jan 2001
Location: Illinois
Posts: 20,896
Thanks: 70
Thanked 3,491 Times in 1,417 Posts
Default Re: 1969 camaro fuel tank stencil

.
Attached Images


Last edited by Mr70; 01-19-2019 at 08:30 PM.
Reply With Quote
  #5
Old 06-17-2016, 02:32 PM
HawkX66's Avatar
HawkX66 HawkX66 is offline
Senior Member

Join Date: Sep 2015
Location: VA/MA
Posts: 1,021
Thanks: 1,015
Thanked 225 Times in 134 Posts
Default Re: 1969 camaro fuel tank stencil

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: William</div><div class="ubbcode-body">The stencil was on the raw steel roll and randomly appeared on some tanks. Not necessary to duplicate it.</div></div>

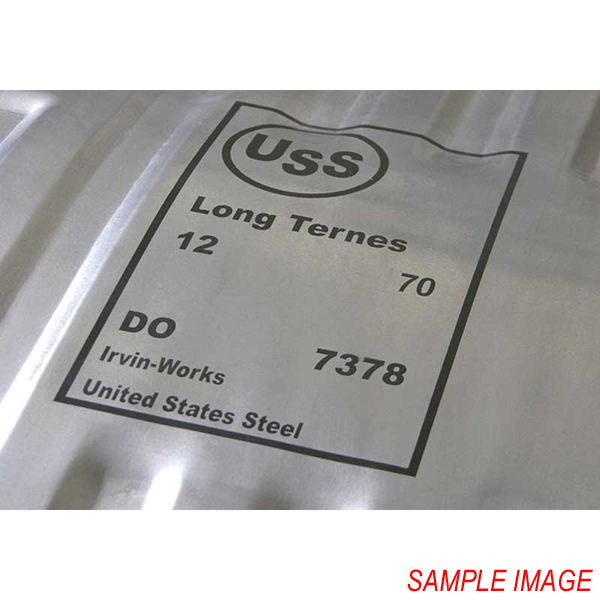

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Mr70</div><div class="ubbcode-body">Hard to say who has the most correct,when this is a very seldom seen,if at all,stencil.
I agree,it was a stencil applied by US Steel in certain areas of their lot runs they put out that were later used to form vehicles gas tanks,and not put on every single solitary tank,yet many want you to believe different.
One owner probably noticed this logo on his Trucks gas tank that was cut from the area where the US Steel logo was applied,so they reproduced this stencil and sold it to the market as an &quot;EVERYONE has to have this on their cars gas tank to be considered correct,and positioned dead center on the bottom of the tank&quot; detail.
Personally I chalk this one under overdone &quot;happy marks&quot;.
</div></div>
Thanks. That's a new one on me. Mine had a grease pencil mark on the top rear driver's side, but that's it.

__________________
-Dave
Semper Fi!

69 Camaro SS396 L34 X66
Reply With Quote
  #6
Old 06-17-2016, 05:21 PM
SS427's Avatar
SS427 SS427 is offline
Yenko Contributing Member

Join Date: Jul 2001
Location: Pleasant Plains, IL
Posts: 10,304
Thanks: 3,045
Thanked 4,440 Times in 1,123 Posts
Default Re: 1969 camaro fuel tank stencil

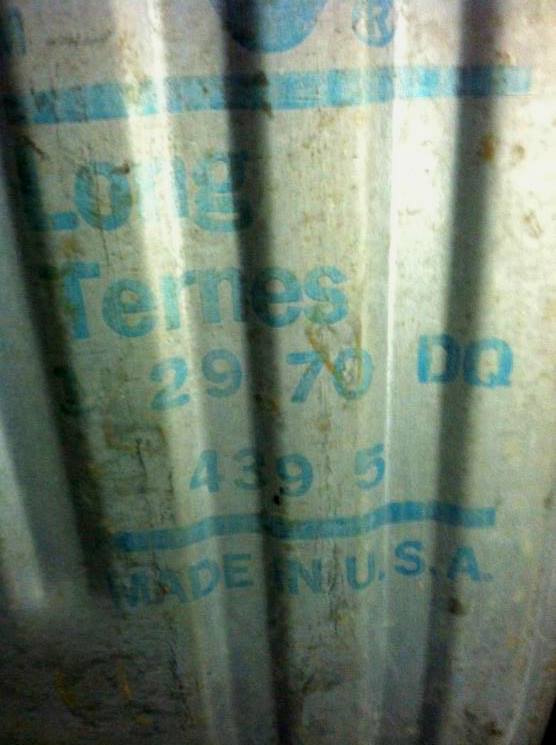

Here is a real assembly line stamp though not on a 69 Camaro.
Attached Images

__________________
Rick Nelson
Musclecar Restoration and Design, Inc (retired)
www.musclecarrestorationanddesign.com
https://www.youtube.com/watch?v=62r-6vgk2_8
specialized in (only real) LS6 Chevelle restorations
Reply With Quote
  #7
Old 06-18-2016, 12:38 AM
bluel78 bluel78 is offline
Senior Member

Join Date: Feb 2002
Location: Ellis. ks. usa
Posts: 269
Thanks: 7
Thanked 17 Times in 13 Posts
Default Re: 1969 camaro fuel tank stencil

I found this stencil mark at the rear of my 69 chevelle hood after the paint was stripped, probably won't include that in the restoration.
Reply With Quote
  #8
Old 06-18-2016, 03:35 AM
jl8z28 jl8z28 is offline
Yenko Contributing Member

Join Date: Jun 2003
Location: Maryland
Posts: 1,550
Thanks: 17
Thanked 120 Times in 85 Posts
Default Re: 1969 camaro fuel tank stencil

My 69 camaro had a logo stamp on it even had a date on it
Reply With Quote
  #9
Old 06-18-2016, 12:41 PM
marxjunk marxjunk is offline
Senior Member

Join Date: Jul 2009
Location: KansasCity KS
Posts: 2,077
Thanks: 89
Thanked 207 Times in 135 Posts
Default Re: 1969 camaro fuel tank stencil

a theory i heard the logo is stamped on the roll and is how its identified for shipping and tracking of the roll of steel...so what ever is stamped first with the roll has the logo...and ive seen pics...and on orig tanks etc, its never in the same place...its almost always centered but is all over the place..and sometimes even, not a complete stamp.

ive parted sooo many cars in my life..and owned so many i cant even remember the number but its not in the 100s..its in the 1000 range for sure..and those where just my cars..ive been under cars my whole life...and have never seen the stamp..and ive had wide range of cars..never have seen it in person..and i notice stuff like this..
__________________
Mark
Reply With Quote
  #10
Old 06-18-2016, 01:32 PM
68l30's Avatar
68l30 68l30 is offline
Senior Member

Join Date: Sep 2000
Location: "Skinny lil boy from Cle Ohio"
Posts: 3,350
Thanks: 60
Thanked 91 Times in 43 Posts
Default Re: 1969 camaro fuel tank stencil

It's usually a ASTM number, material size &amp; grade of material, and a heat number. They were probably painted every 8 ft or so depending on where they were heading or if the end user required it more often depending on the size of there dies and material usage. All of our material is marked one way or another, I require it for PMI and a must for matching certs for ASME code requirements.

BIG
Reply With Quote
