69 Camaro- need help w/suspension inspection marks


I am currently refinishing all my suspecsion components on my 03E Norwood built 69 Z/28 Camaro. I need your expert opinions for proper color and placement of inspection paint on the following parts:

-disc brake spindles
-steering arms
-tie-rod ends
-idler arm
-pitman arm
-steering box
-drag link
-sway bar

etc, etc... i have many photos but some contricict others and others are inconclusive. I have a start but would apriciate your help. Any pics would be awesome. Thanks!

TM

Re: 69 Camaro- need help w/suspension inspection marks


Take a look in the Bad Factory Welds post. My L-78 Camaro is a 20K mile car and all the paint marks are original. All I did was clean up the suspension although the springs are NOS and the a-arms have been repainted.

Paul

Re: 69 Camaro- need help w/suspension inspection marks


Paul, Is your car a Norwood or LA car? Thanks

TM

Re: 69 Camaro- need help w/suspension inspection marks


Norwood car, 04C build date, X22 code.

Paul

Re: 69 Camaro- need help w/suspension inspection marks

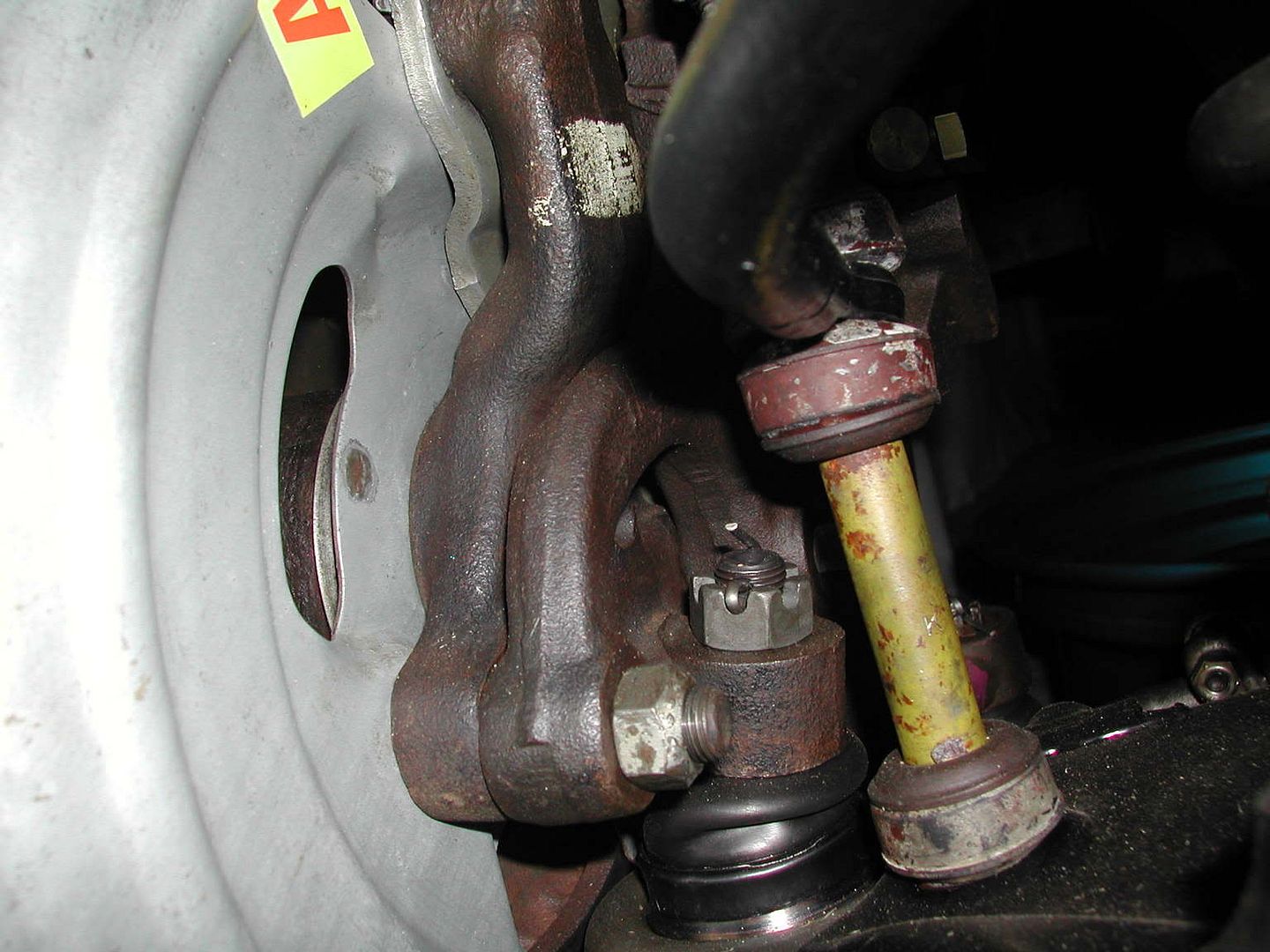

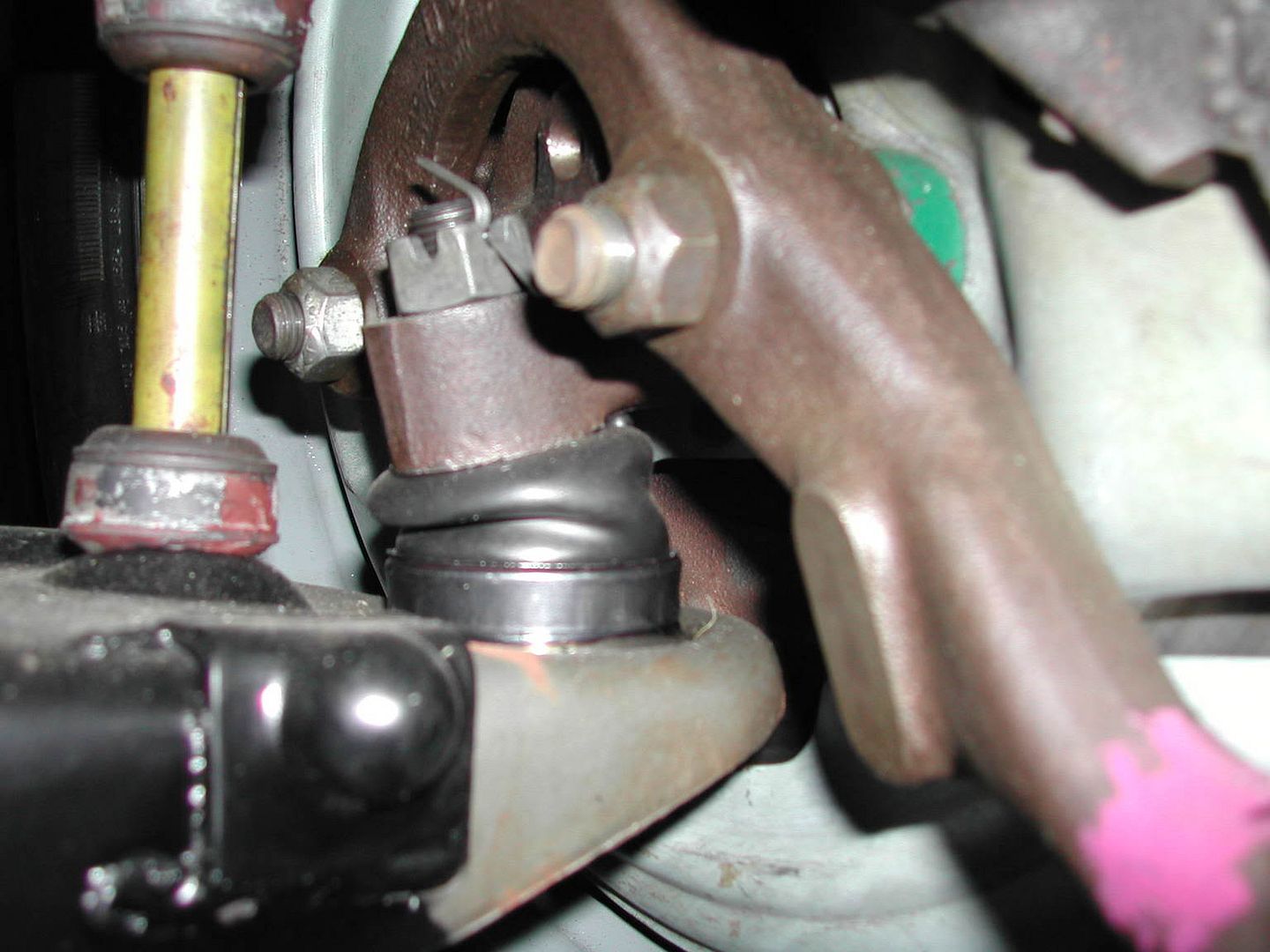

Pics of pass side:

http://i3.photobucket.com/albums/y86...6/DSCN3607.jpg

http://i3.photobucket.com/albums/y86...6/DSCN3608.jpg

Paul

Re: 69 Camaro- need help w/suspension inspection marks

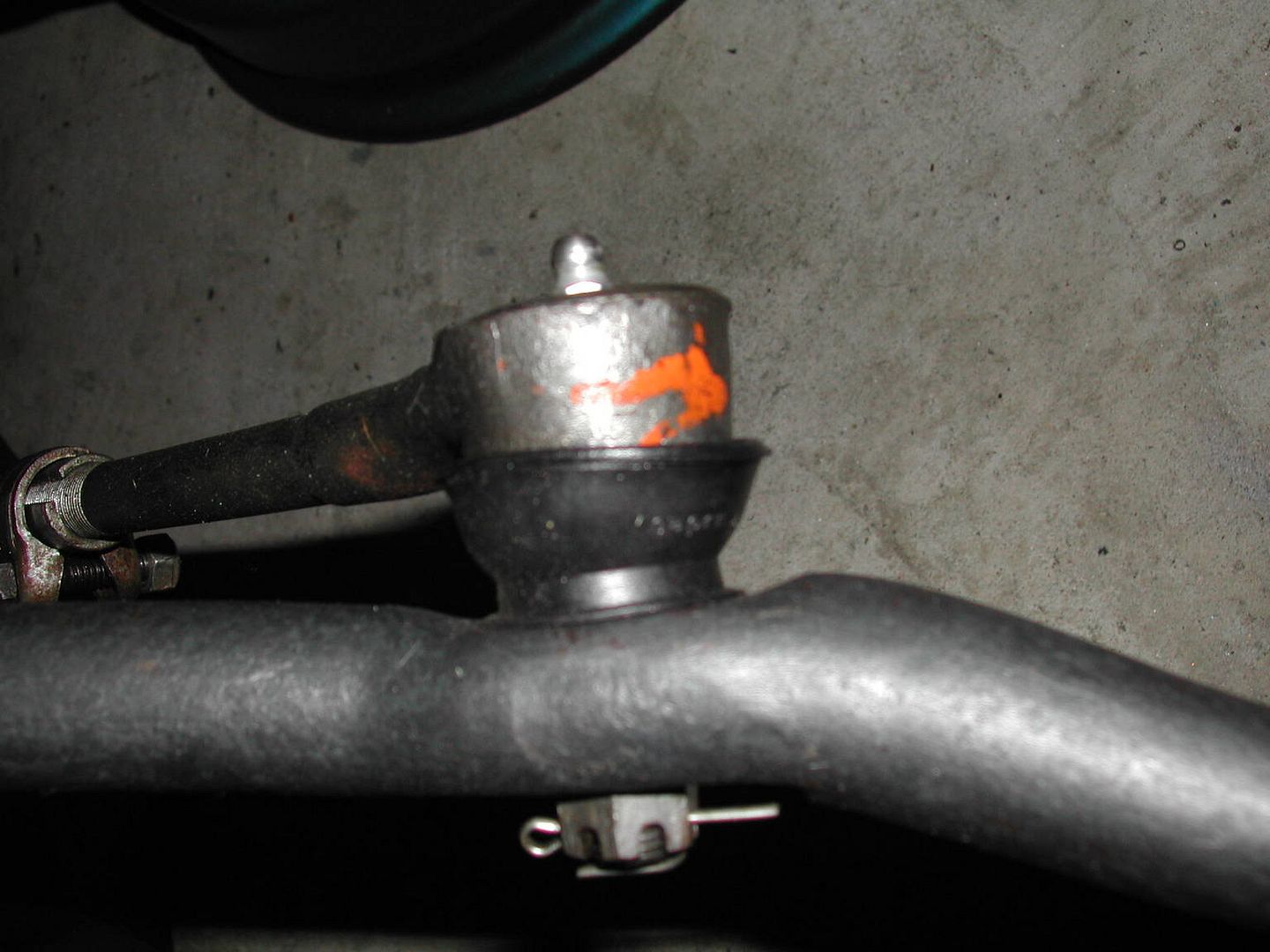

Tie Rod inspection mark:

http://i3.photobucket.com/albums/y86...6/DSCN3611.jpg

Paul

Re: 69 Camaro- need help w/suspension inspection marks

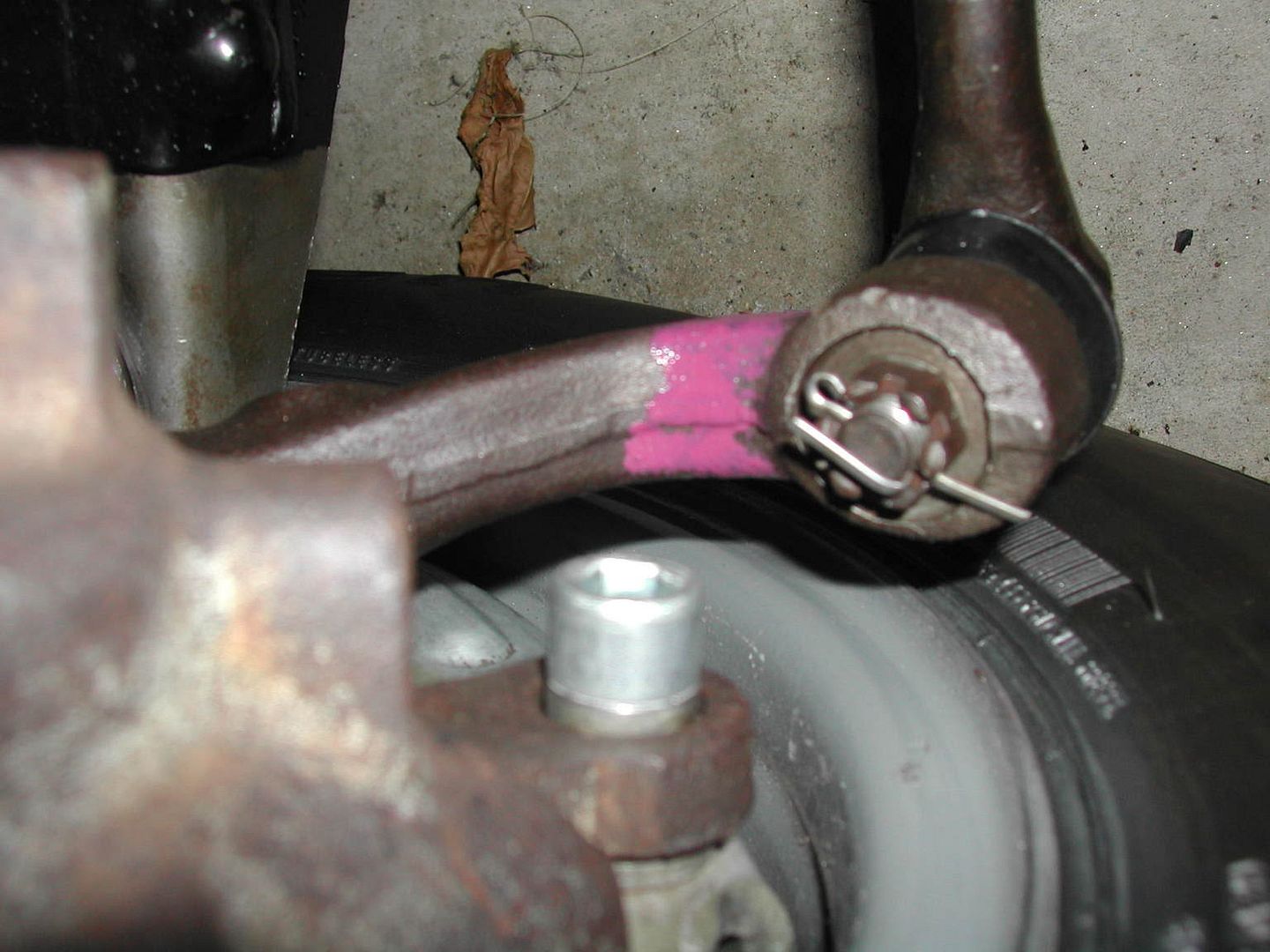

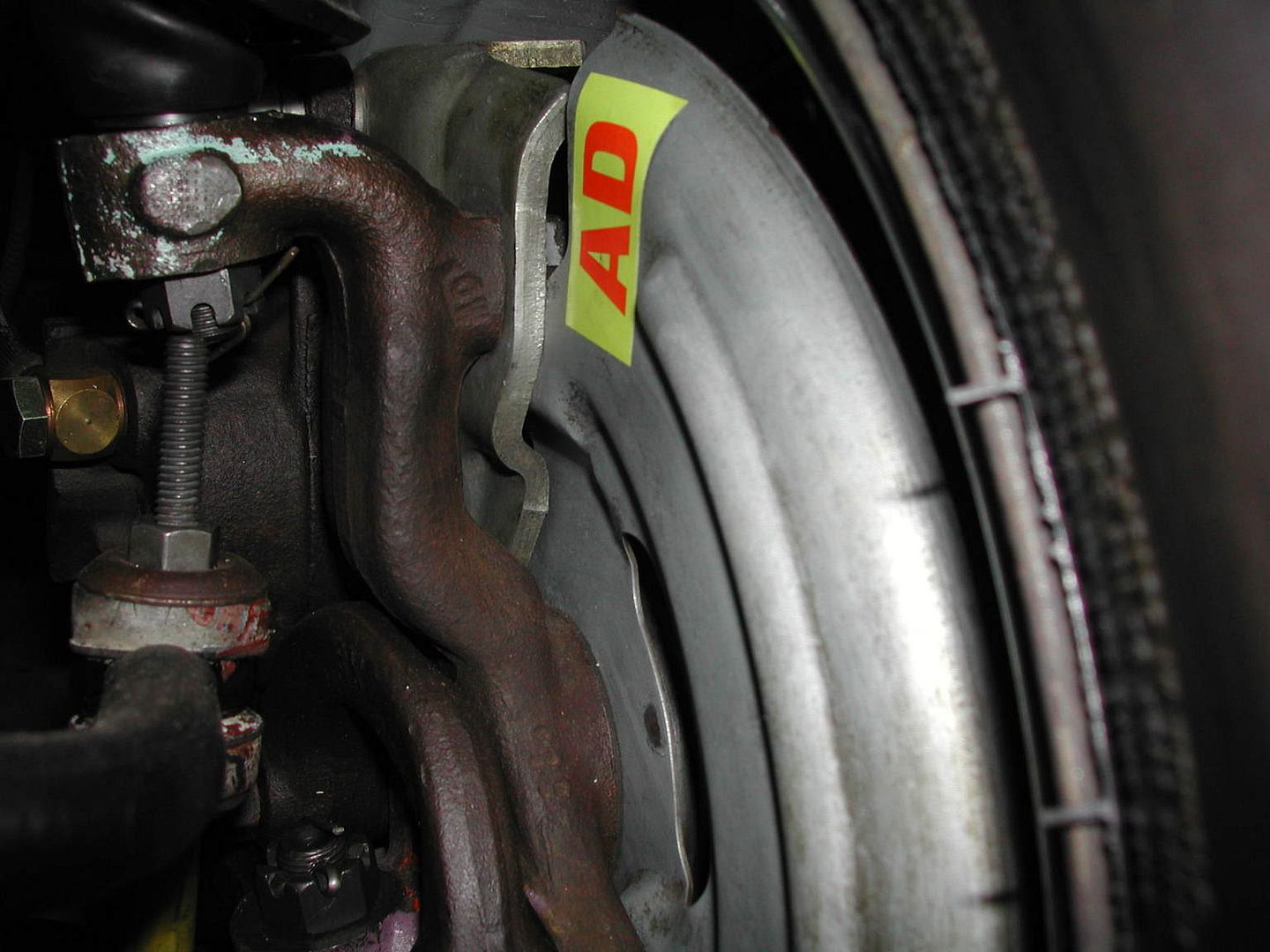

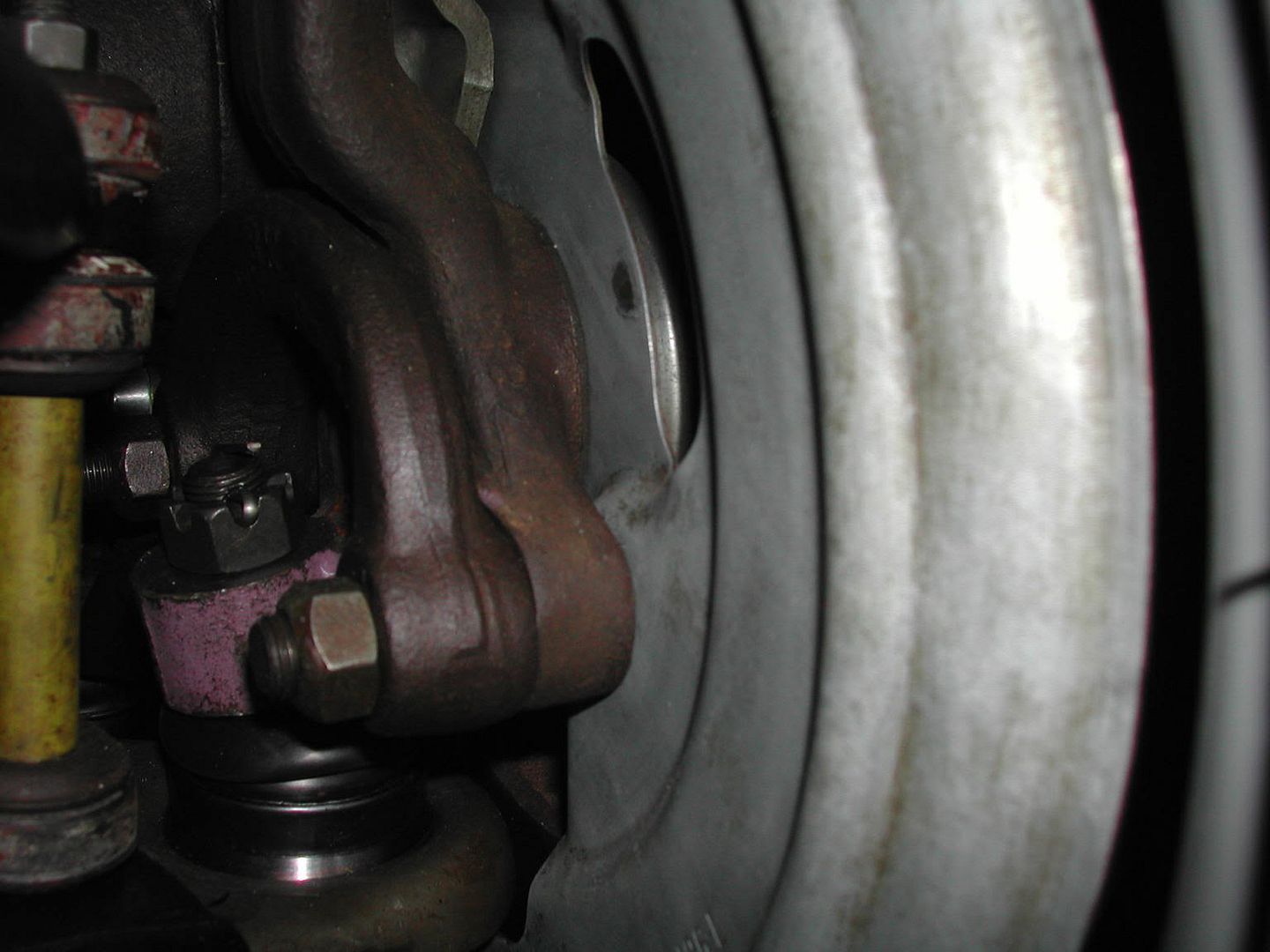

Drivers Side marks:

http://i3.photobucket.com/albums/y86...6/DSCN3612.jpg

http://i3.photobucket.com/albums/y86...6/DSCN3614.jpg

http://i3.photobucket.com/albums/y86...6/DSCN3616.jpg

Hope this helps, Paul.

Re: 69 Camaro- need help w/suspension inspection marks


GREAT pictures. Yours is the first I have seen (other than my car) with pink on the left steering knuckle and white on the right one. Several guys have told me that it isn't right, but that is sure what was on mine from the factory.

Lynn

Re: 69 Camaro- need help w/suspension inspection marks


Lynn, what are some details on your Camaro? Build Date, Factory, SS 396, etc. Thanks,

Paul

Re: 69 Camaro- need help w/suspension inspection marks


Here are a few that I took awhile back.. Thet are from a X77 02D car.. Mark
http://i7.photobucket.com/albums/y29...8/Dcp01110.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01109.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01104.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01098.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01092.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01091.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01090.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01089.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01088.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01087.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01085.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01084.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01083.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01082.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01081.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01080.jpg
http://i7.photobucket.com/albums/y29...8/Dcp01079.jpg
