Can anybody ID this fan?

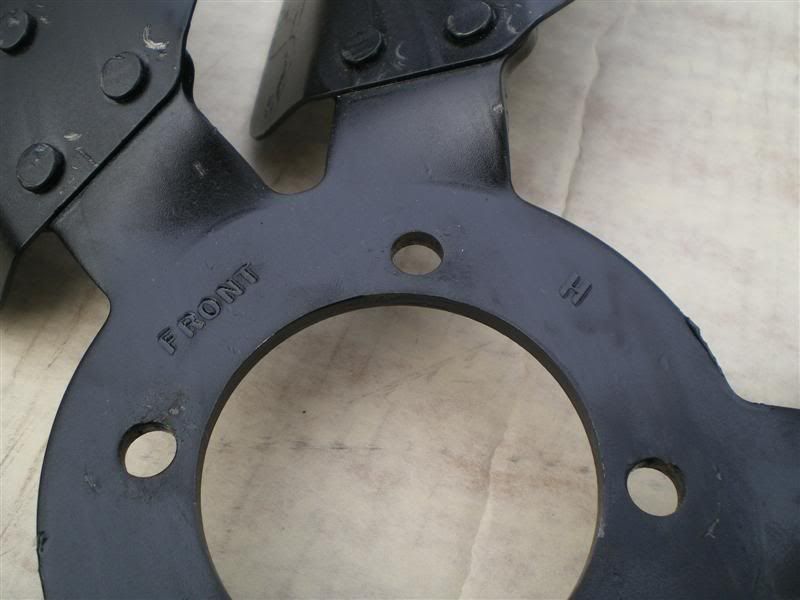

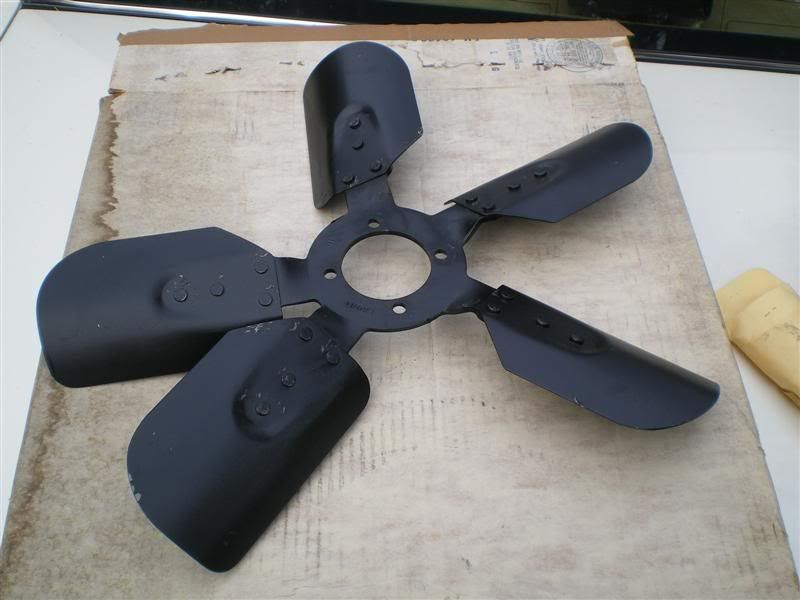

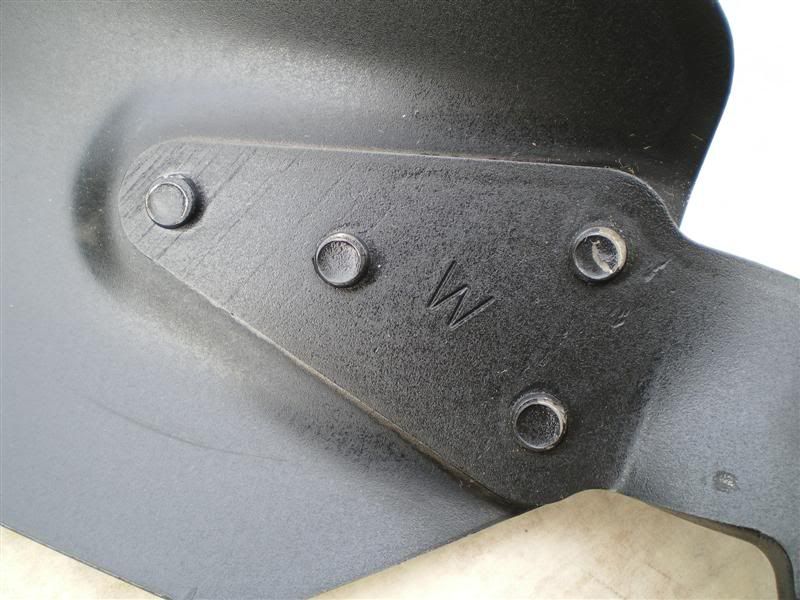

I have this fan, it is NOS with original runs from being dipped, but I am unsure of the application. It has very few markings on it: FRONT, H, and W stamps as can be seen in these pictures. 5 blades, 4 rivets per blade. Any info is greatly appreciated!


http://i151.photobucket.com/albums/s...0950Medium.jpg
http://i151.photobucket.com/albums/s...0951Medium.jpg
http://i151.photobucket.com/albums/s...0955Medium.jpg

Steve

Re: Can anybody ID this fan?


What is the bolt circle?

Re: Can anybody ID this fan?


Is that the measurement from one bolt hole to another? If so, it is 3.25". Also, the center hole has a diameter of 2 5/8" and the widest diameter of the fan is about 18".
Steve

Re: Can anybody ID this fan?


That looks & sounds identical to a #3770262 fan I found awhile ago that fits:
1965-66 series 10-30 trucks w/AC.
1965-68 Impalas w/283 cid.
1964-68 Chevelle-Chevy II w/283 or 307cid.and AC.
1968 Camaros w/S/B.

Re: Can anybody ID this fan?


Thanks for the applications!
