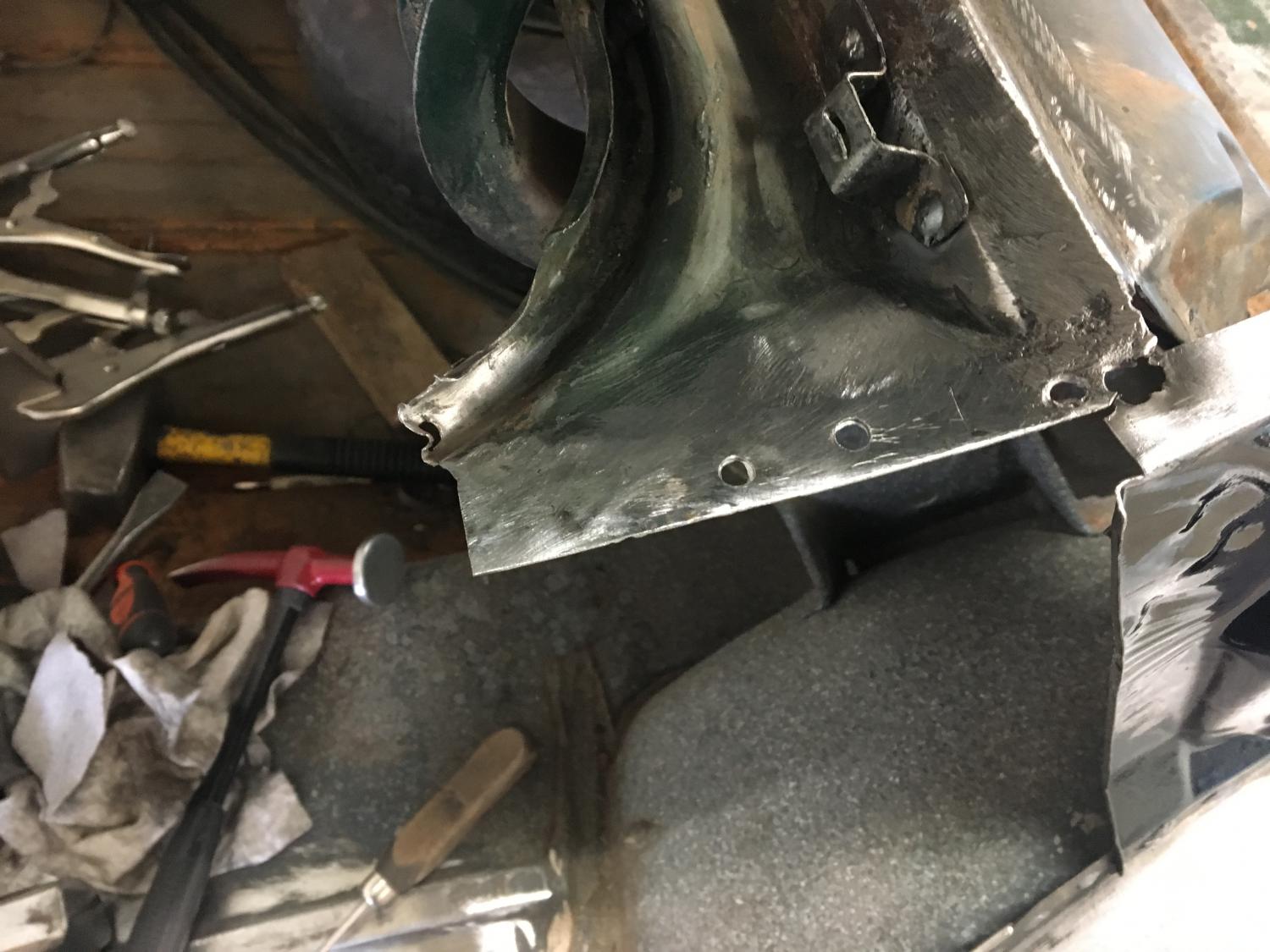

Tub time. The flange of the tub is sandwiched between two layers at the top. Getting the old metal out from in between was a challenge. The huge holes on the outermost flange were two-fold. 1) because it was so hard to separate, it required a larger drill size. 2) My game plan was to plug weld to the inside flange first (through the larger hole). Then finish welding the outer flange.

Attachment 212333

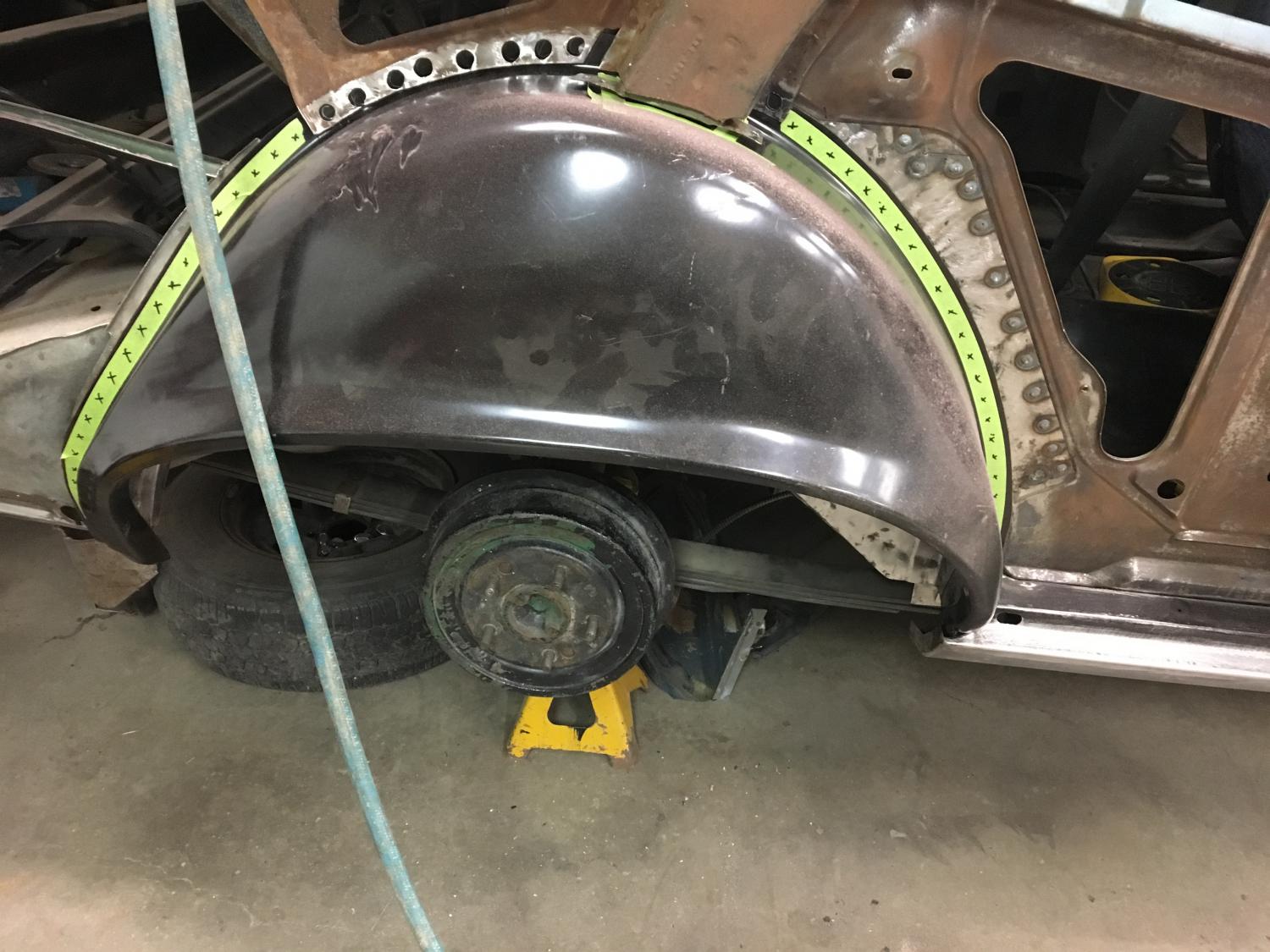

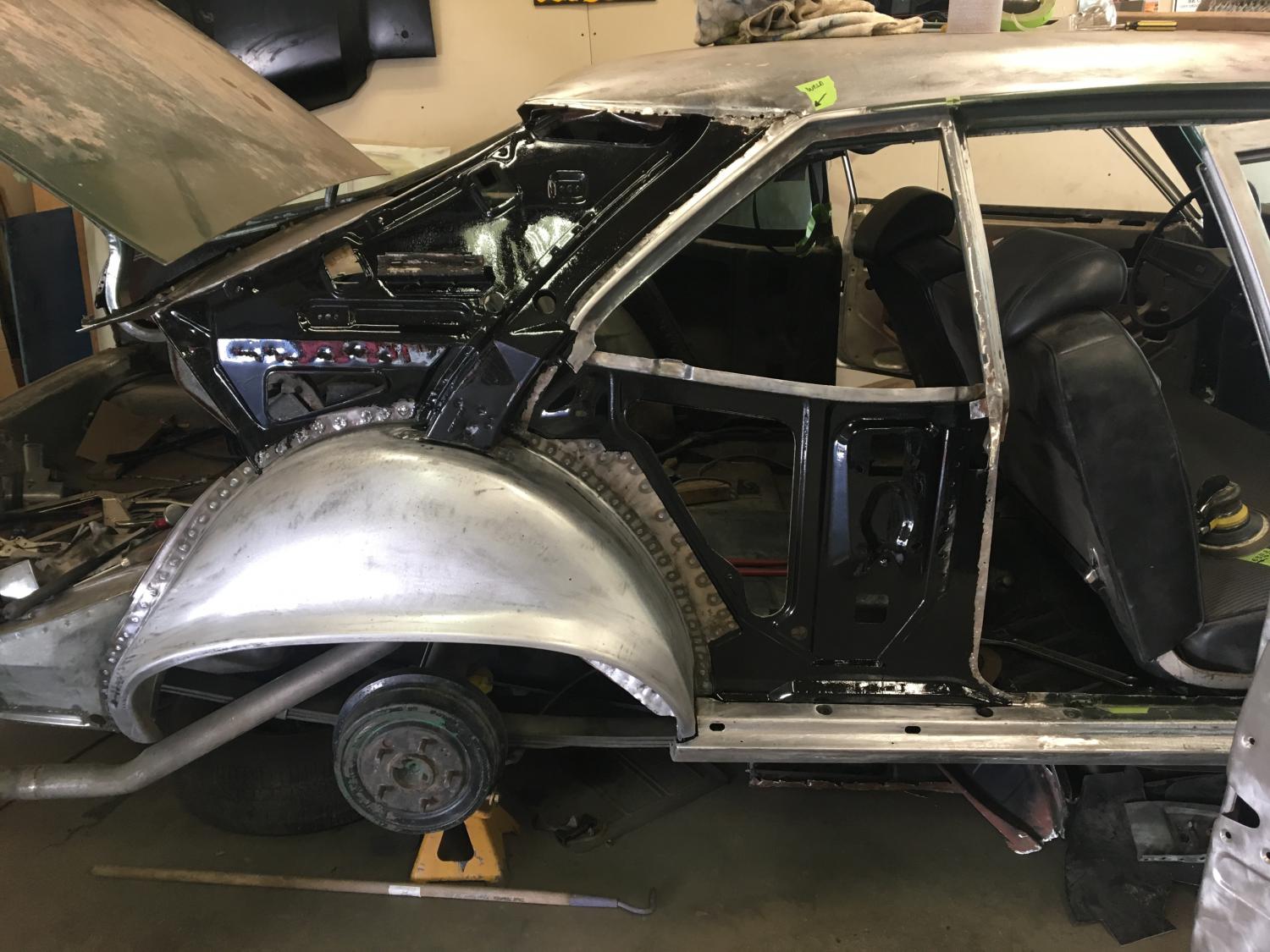

Mock up with tub

Attachment 212334

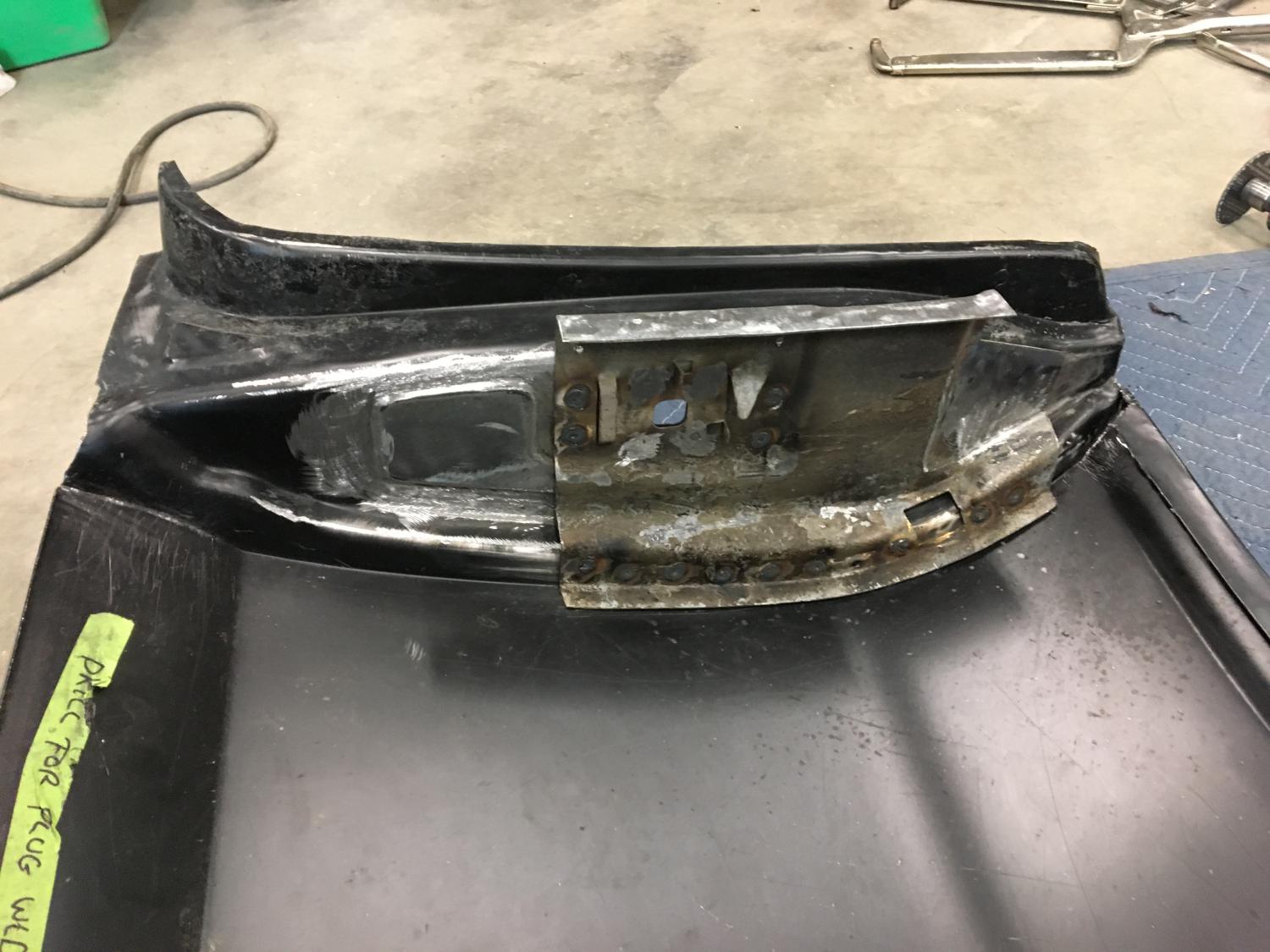

Drill, drill drill, drill

Attachment 212335

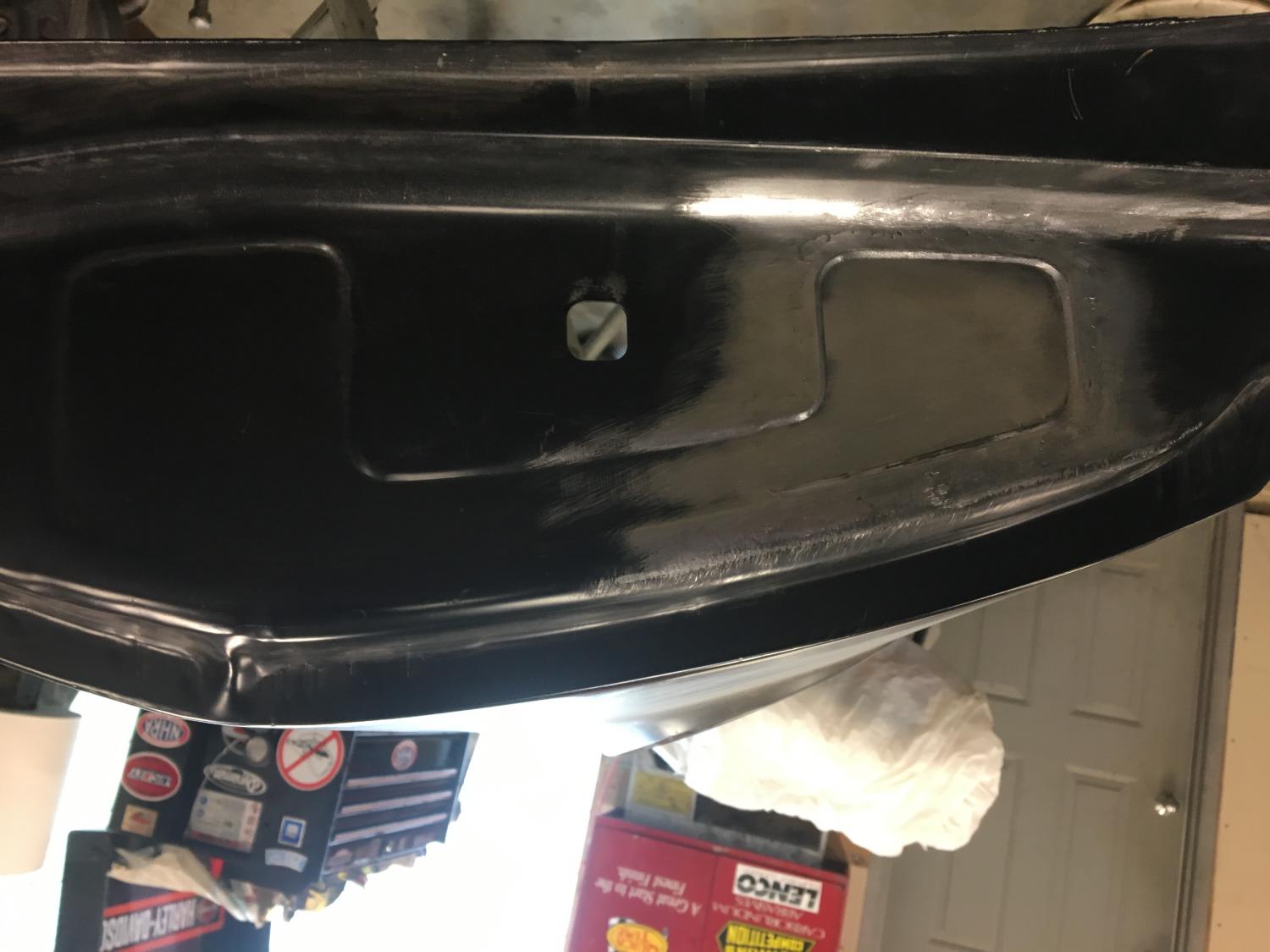

And getting welded... You can see I took the opportunity of no quarter to work on the trunk floor.. lots of old drilled holes (battery in trunk ?) and lots of hammer and dolly work. While things were opened up I was stripping the "to be painted" surfaces to bare metal and the "no show" surfaces were getting wire wheeled sanded and either Por-15 if surface rusted or DP90 if bare and clean.

Attachment 212336

1970 L-78 Nova Restoration; Saga of The Green Bastard


Continued welding

Attachment 212346

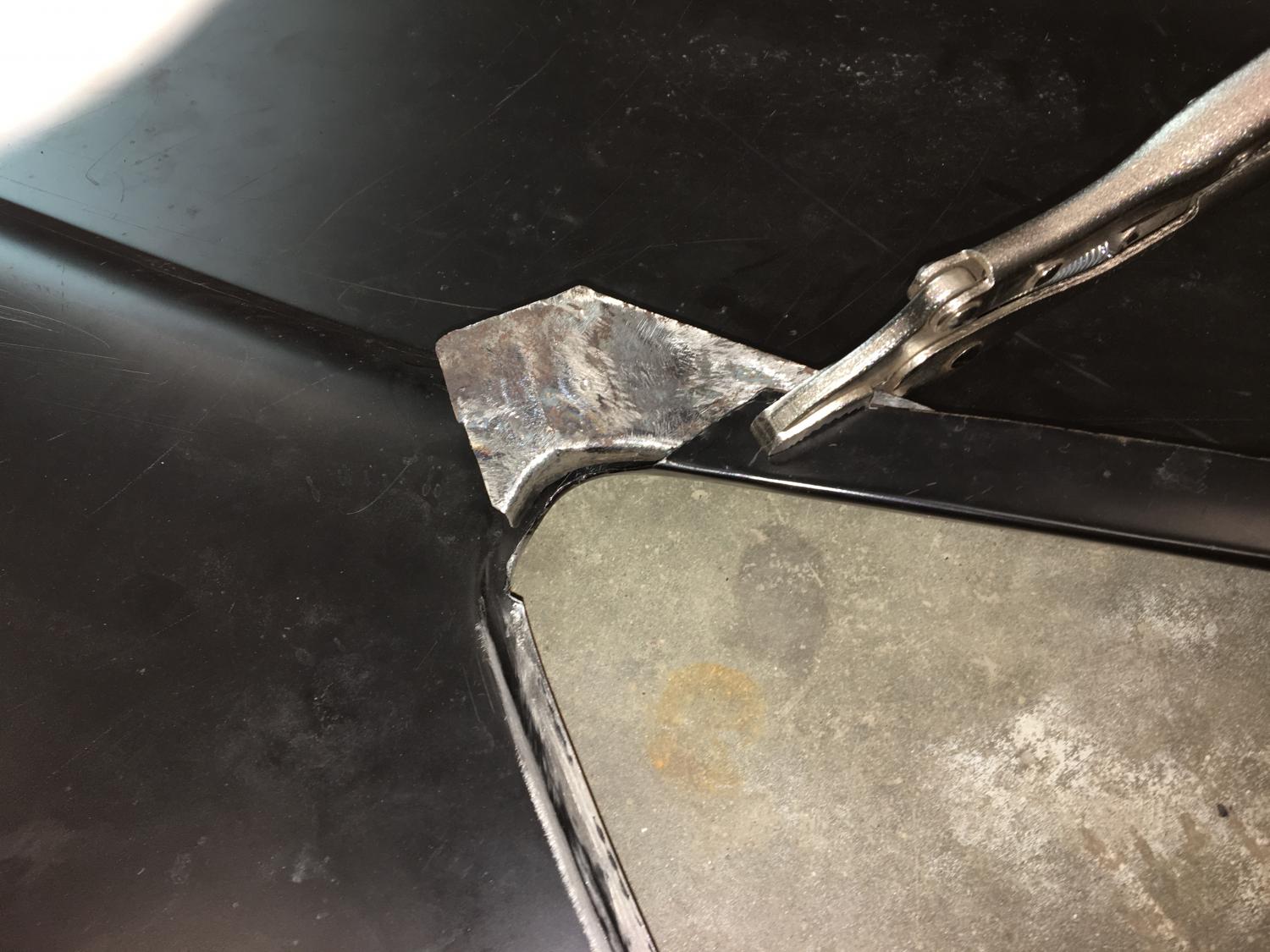

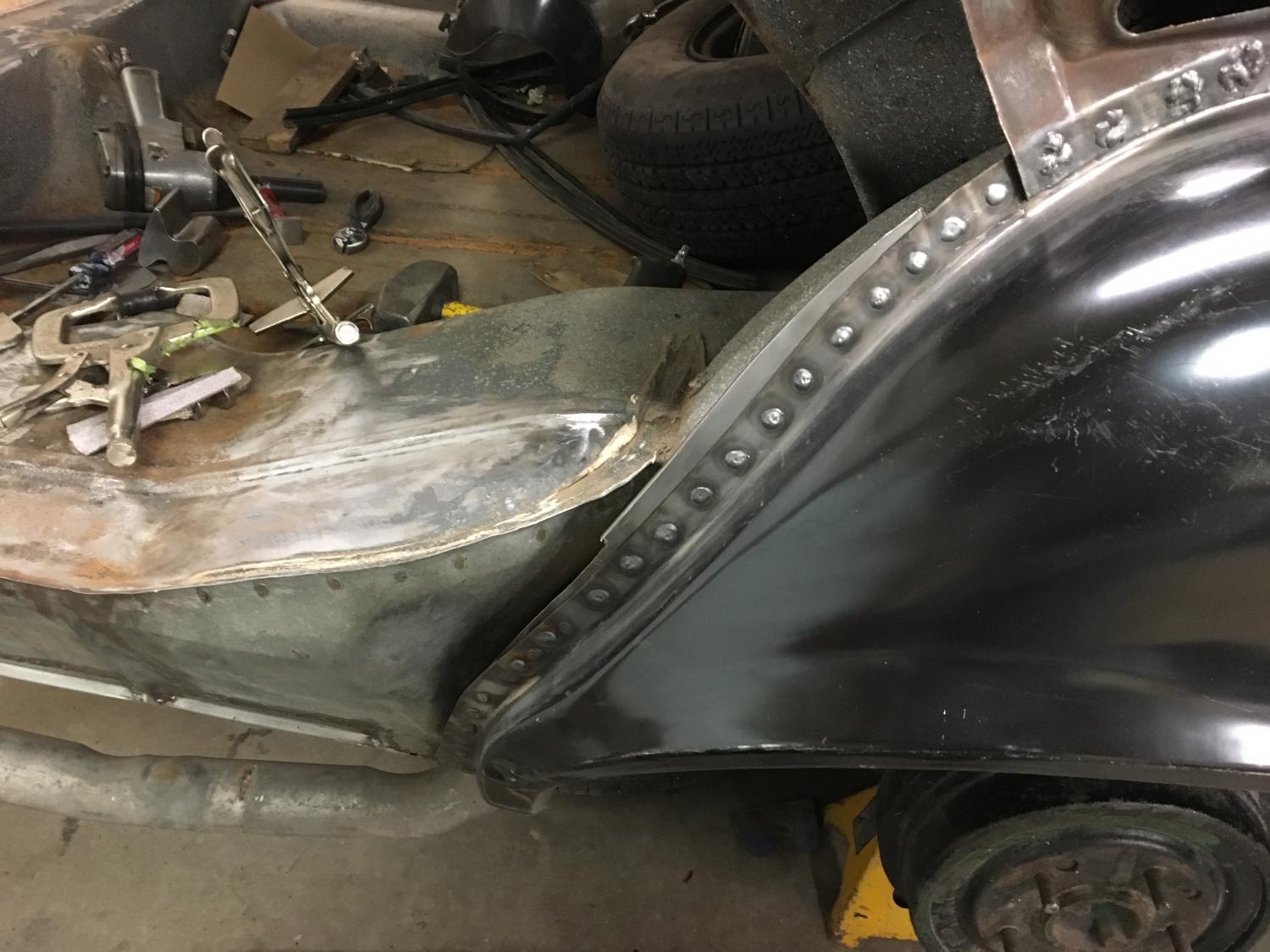

Front lower inside, with faux spot dimples... plug welded in between.

Attachment 212347

Rear Lower inside

Attachment 212348

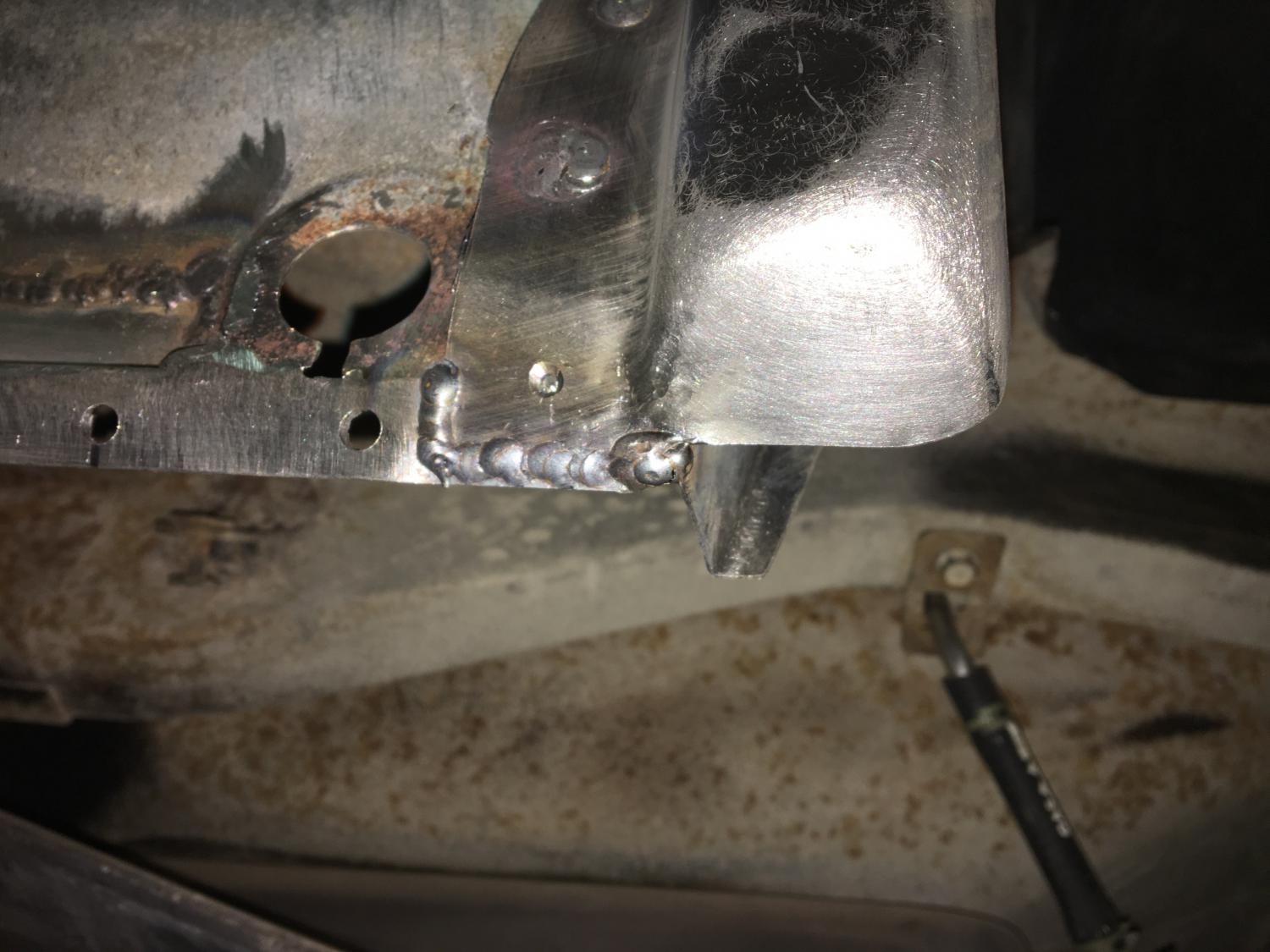

Bottom rear edge

Attachment 212349

Top flange

Attachment 212350

1970 L-78 Nova Restoration; Saga of The Green Bastard


Attachment 212351

Attachment 212352

Nice work! I don’t have the skills for this, but I love to watch this part of a build more than anything for some reason…

It all looks great.

I hope you fit the quarter panel along with the wheel house before welding.

1970 L-78 Nova Restoration; Saga of The Green Bastard

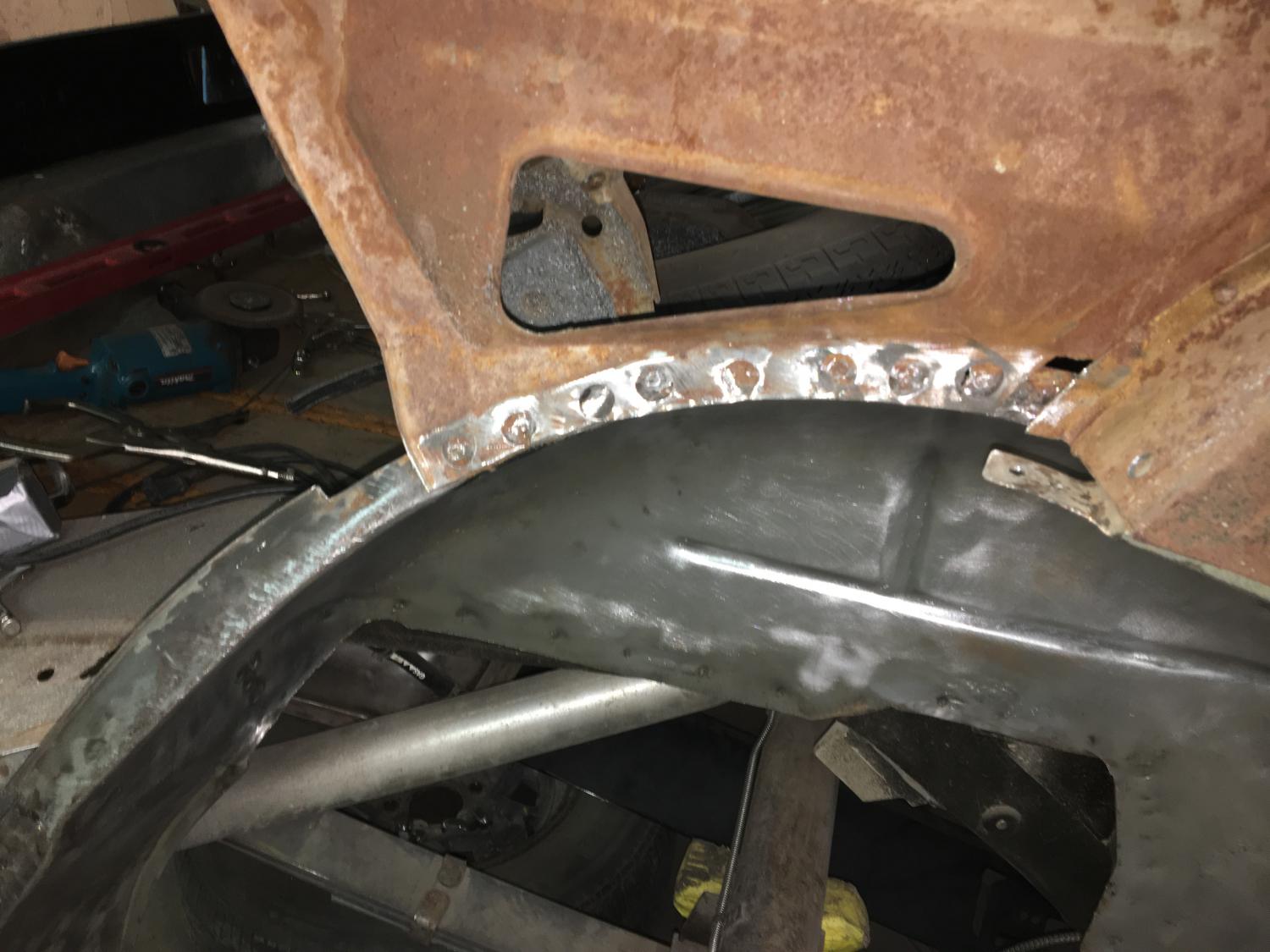

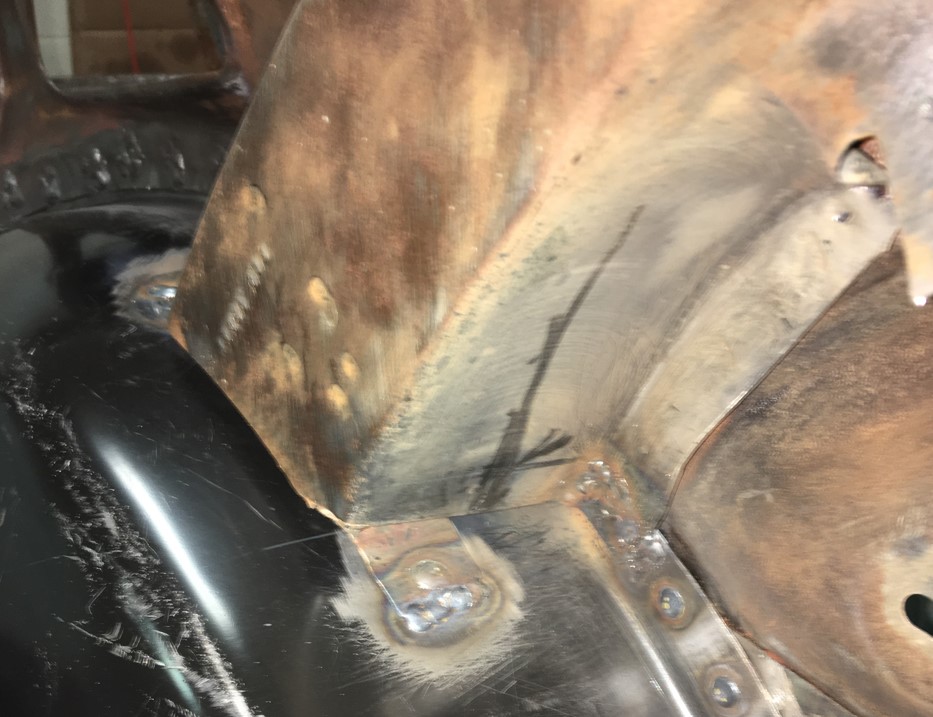

Stripped out the old sandwiched quarter at base of rear window/trunk

Attachment 212628

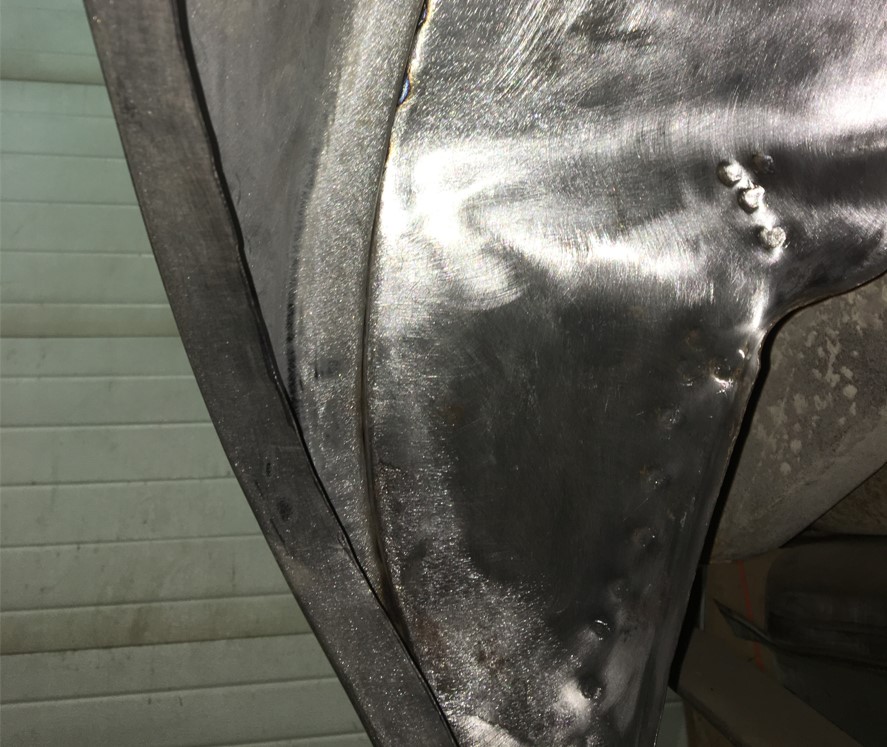

A little repair in the corner (sorry poor picture)

Attachment 212629

1970 L-78 Nova Restoration; Saga of The Green Bastard


Tail panel had been cut out as it had to be replaced due to some old repaired damage. Earlier in the sequence but had not yet included photos.

Attachment 212630

Attachment 212631

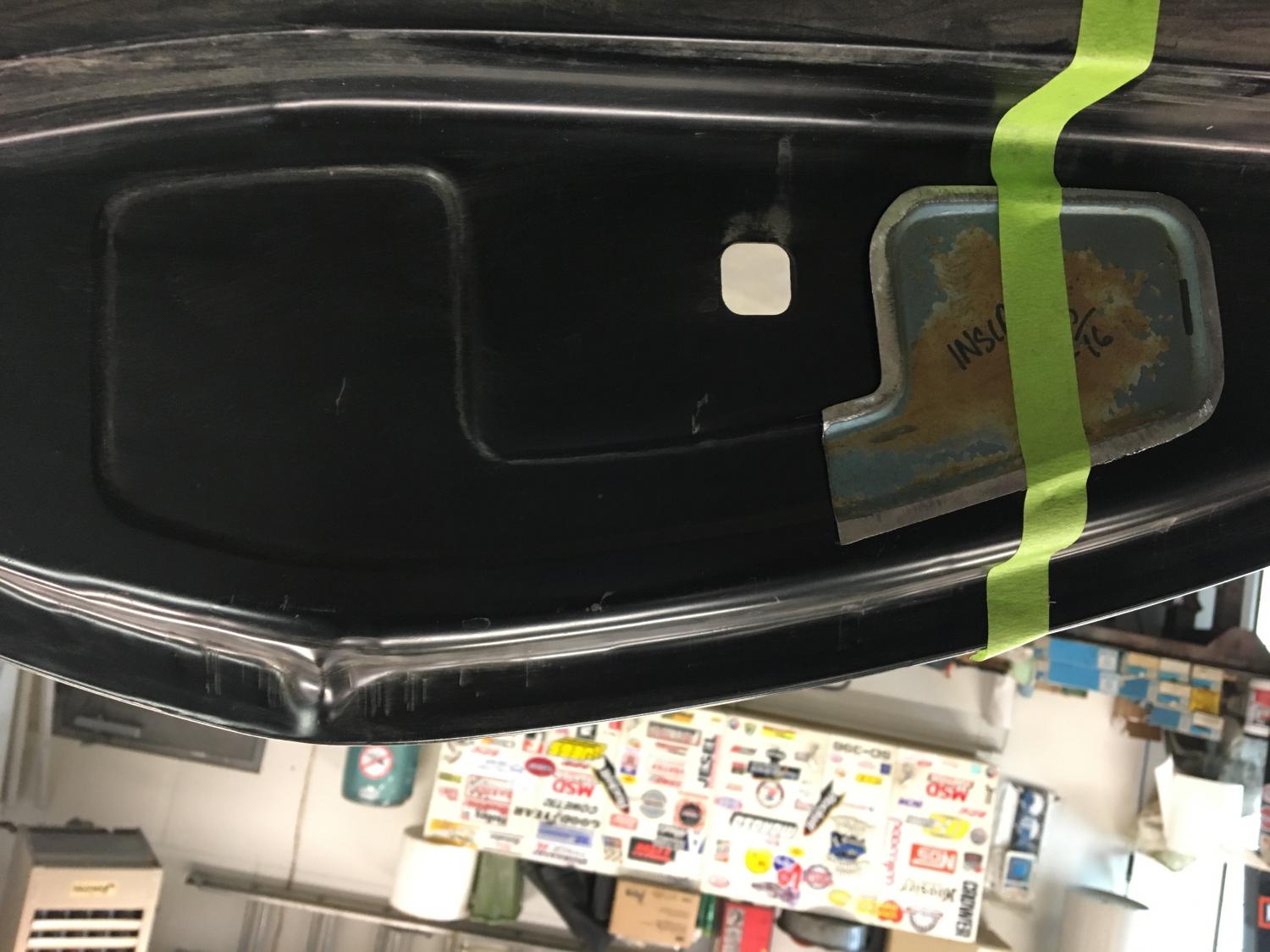

One advantage to having scavenged the replacement used inner door panel from the wrecker... I now had an original jamb to harvest the "telephone receiver". Recall the quarter which was cut off was a replacement GM panel with only half a receiver as with the replacement NOS GM panel I was now putting on. Well, we can fix that detail.:beers:

Attachment 212632

Attachment 212633

Attachment 212634

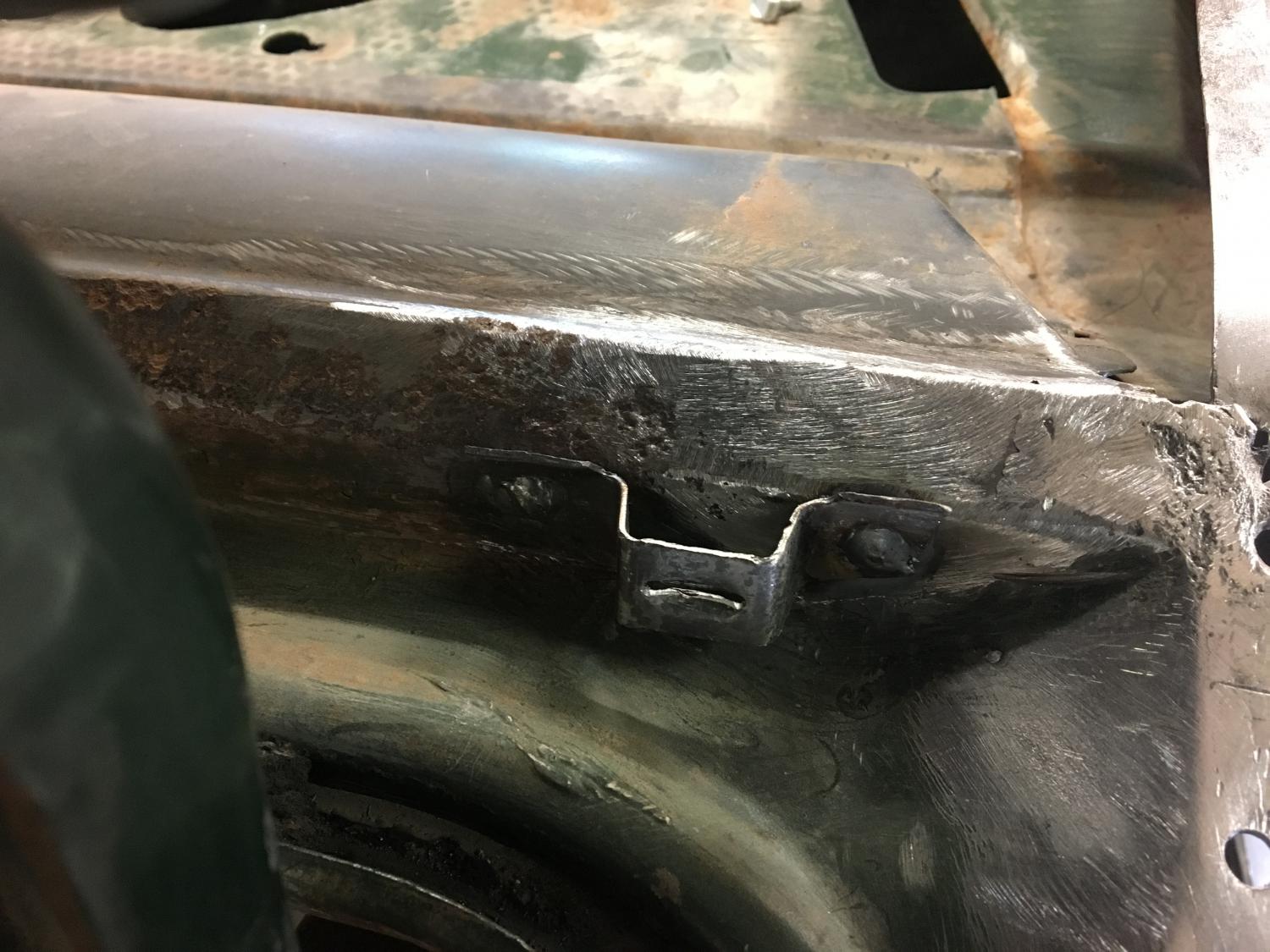

I tig welded the receiver in only because I wanted to practice with the tig.

Attachment 212635

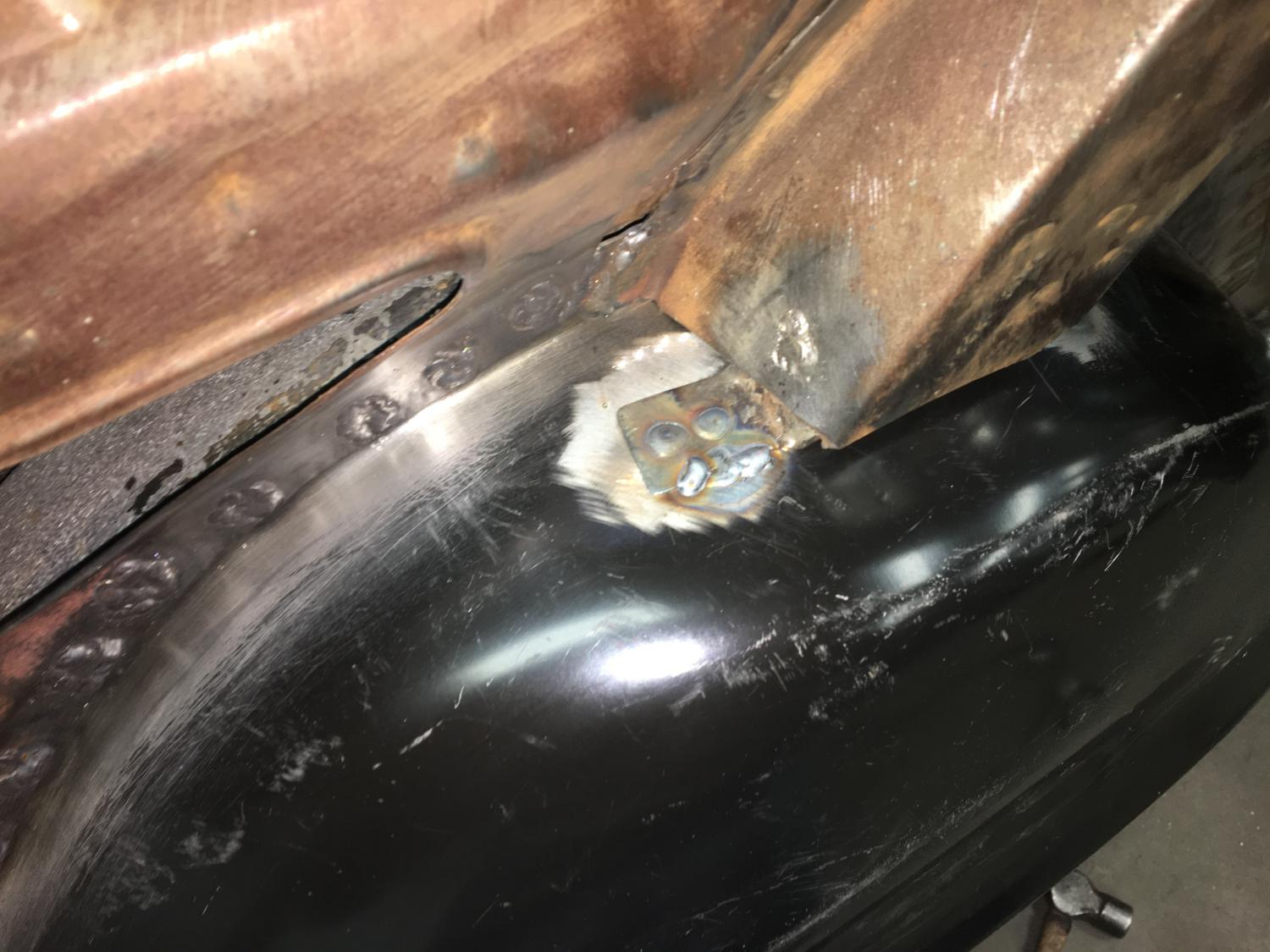

Because of the previous jamb and inner door panel damage, It was best to also attach the jamb/striker reinforcement to the panel first. That way the quarter can be perfectly aligned and welded to the inner panel afterwards.

Attachment 212636

1970 L-78 Nova Restoration; Saga of The Green Bastard


Door side of jamb

Attachment 212637

Attachment 212638

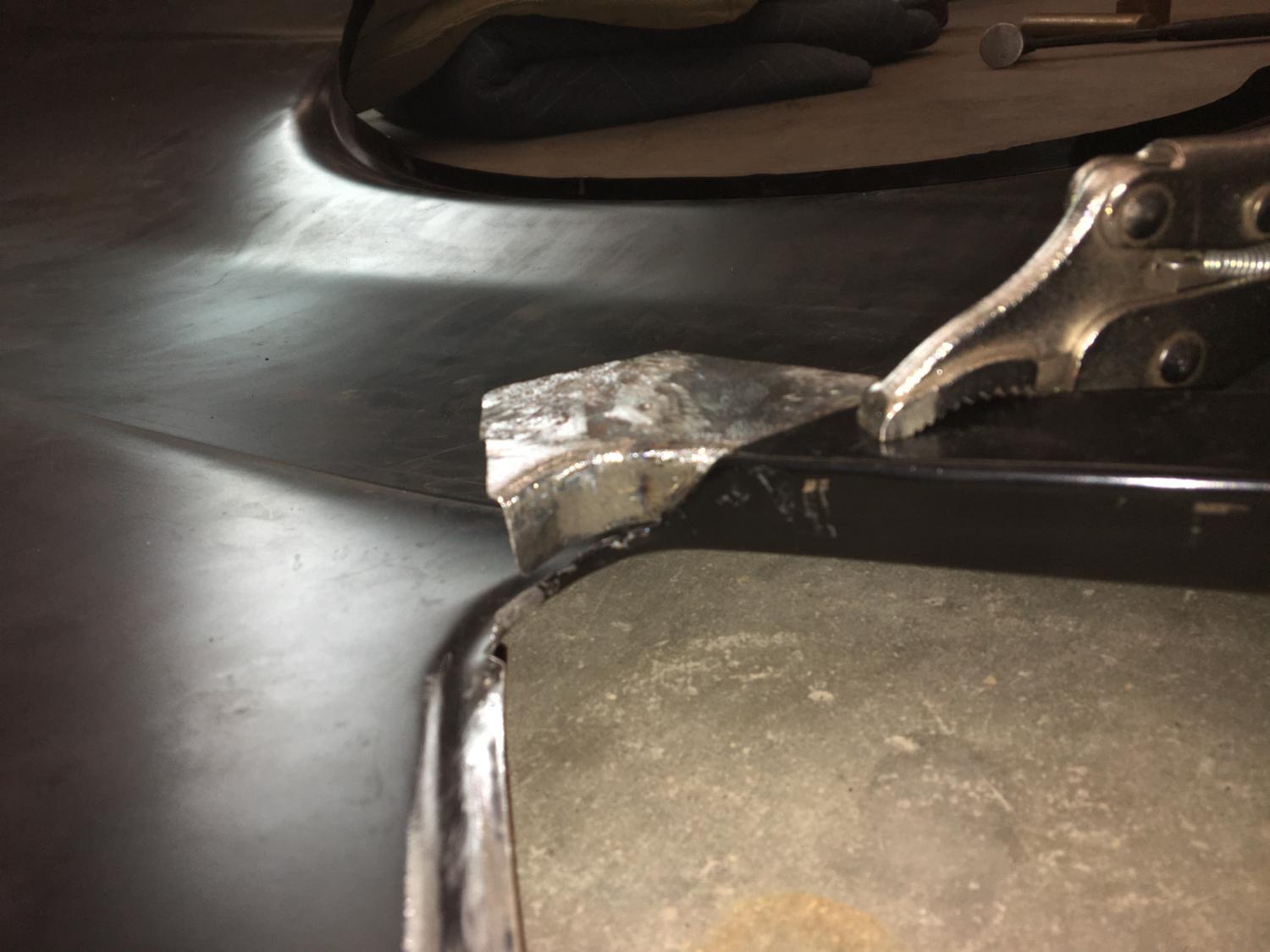

There is a small reinforcement piece that goes in the corner of the quarter window. This piece was completely missing from the previous repair. Unfortunately I was not aware of it when I scavenged the repair piece from the wrecker. I did my best to get some phone pics of the LH side taping my phone to a stick and sliding it in there. Then fabbed a piece as close as I could from the pics

Attachment 212639

Attachment 212640

Yes... many,many trial fits
