Re: 1967 Camaro with j52 option


Is a SS350 a "muscle car"? I would bet that with the right gears, an L30 car could run right with a SS350 with standard 3.31s. The L30 is really an identical engine to the 350 in all respects (heads, cam, etc), just a 1/4" shorter stroke for 23 less cubes.

Re: 1967 Camaro with j52 option


The last owner says this is the correct master cylinder the part # is L2229771. If this is not correct what is?

Re: 1967 Camaro with j52 option


I have a 67 RS/SS with manual disc brakes. The car is in storage right now and we just got 15 inches of snow, I will look thru my pics and see if I have a part number. The single bail wire to hold the lid on is a 70 and up thing. I love the car.
Buddy

Re: 1967 Camaro with j52 option


Your master cylinder should resemble this one.

Re: 1967 Camaro with j52 option


Disregard the remote oil filer in the picture but this is what the J52 non-power assist master cylinder looks like. It mounts level rather than tilted as in the J50/J52 combo. It's shaped slightly different and has no bleeders.

Re: 1967 Camaro with j52 option

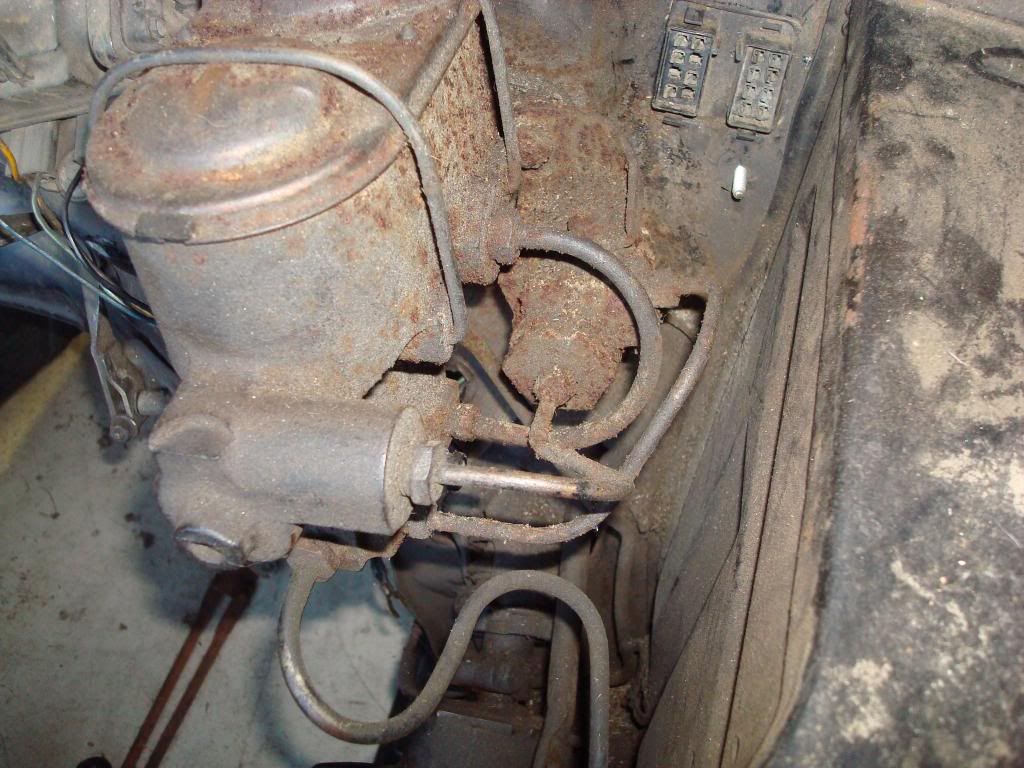

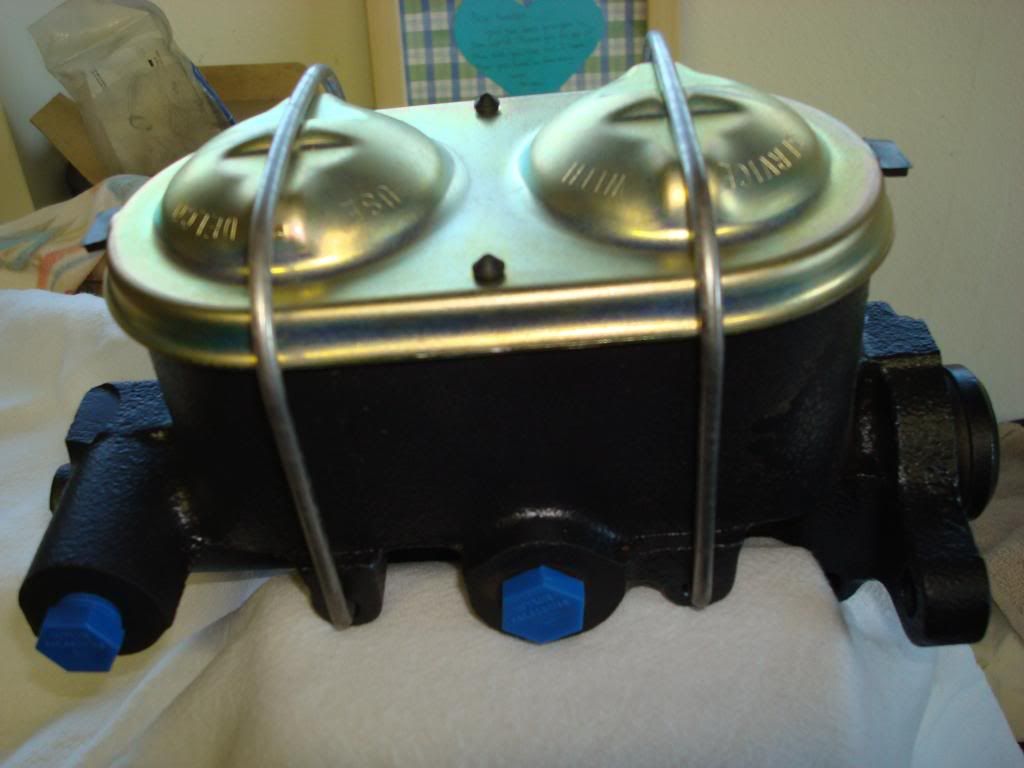

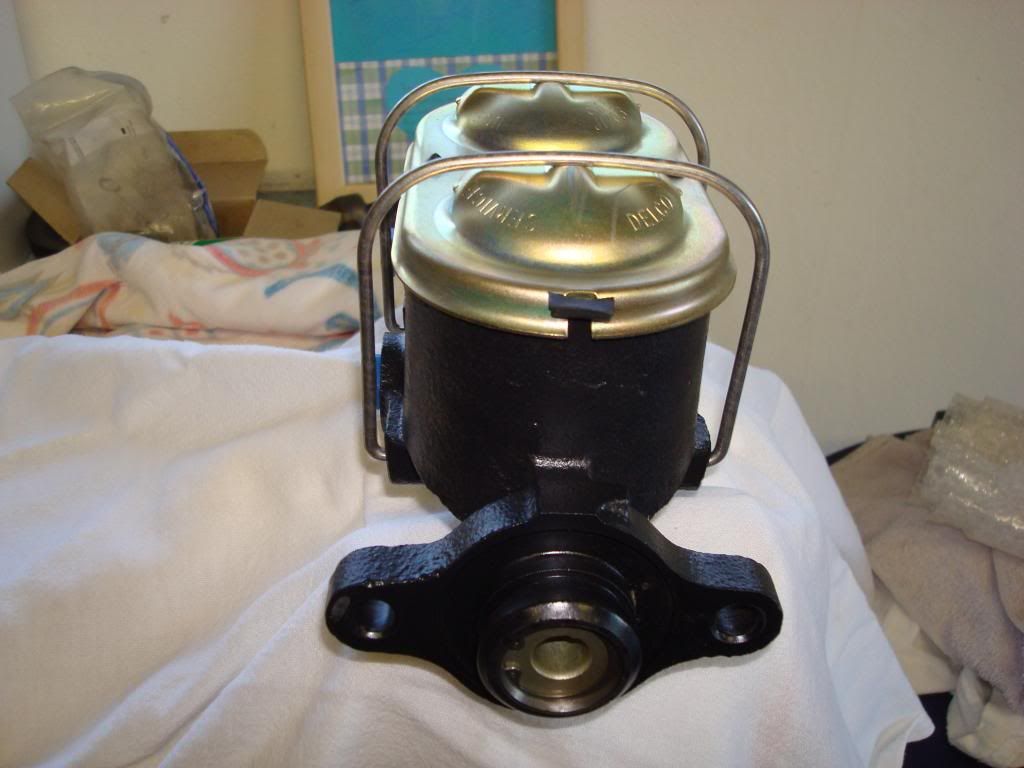

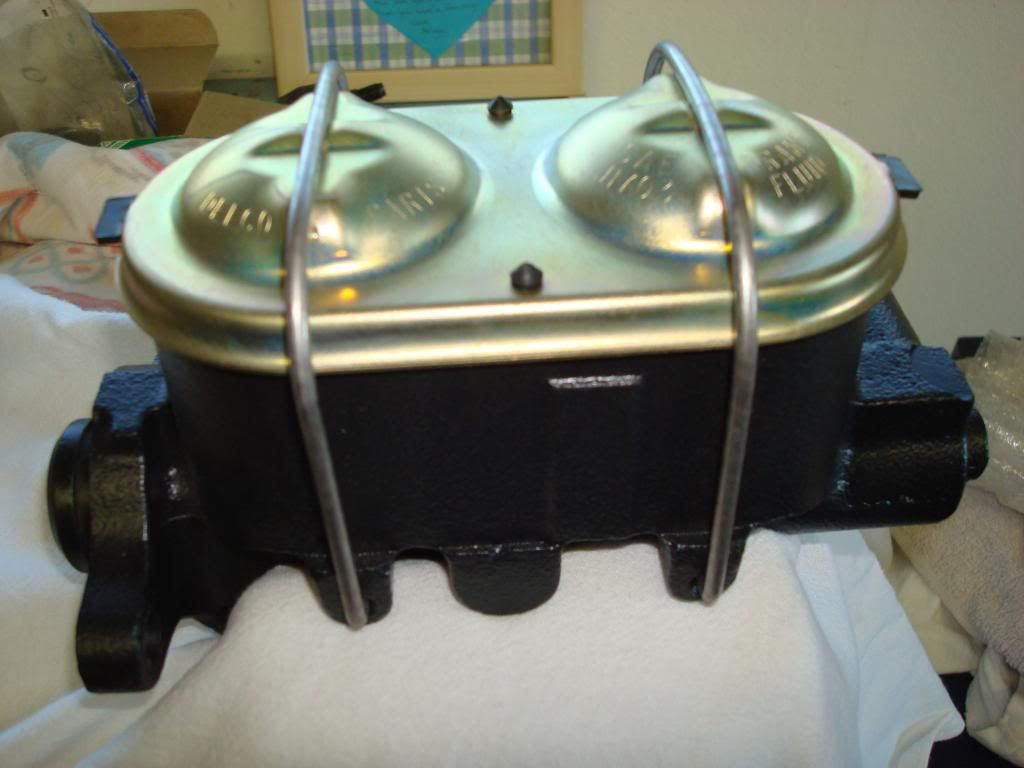

Here is one for 67 Nova with manual factory Disc brakes. No bleeders is correct

Not sure if 67 Camaro are the same "AD" code as the 67 Nova is as the M/C casting number #5459467 for

4 piston calipers.

Here is some info FWIW...

67 Camaro M/C

Dave
67 Nova Boy

http://i172.photobucket.com/albums/w...ps9ab00ab2.jpg

http://i172.photobucket.com/albums/w...ps33ffc0f7.jpg

http://i172.photobucket.com/albums/w...ps661a7850.jpg

http://i172.photobucket.com/albums/w...ps1bb5f4b9.jpg

Re: 1967 Camaro with j52 option


Looks similar to 67 Corvette w/o power brakes as well??? [img]<<GRAEMLIN_URL>>/dunno.gif[/img]

Jake

Re: 1967 Camaro with j52 option


Do you know where I can get one is this one for sale?

Re: 1967 Camaro with j52 option


Nice car!
Another MC pic and info is here: http://www.camaros.org/suspen.shtml#Brakecomp

The window sticker is not original, btw.

Re: 1967 Camaro with j52 option


<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: drdave69</div><div class="ubbcode-body"><div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: x77-69z28</div><div class="ubbcode-body">I thought the 4P was SS-350? </div></div>

Was also used for the L30/M20. </div></div>


Plus 4P used for the early L78 cars too.
[img]<<GRAEMLIN_URL>>/beers.gif[/img]
~ Pete
